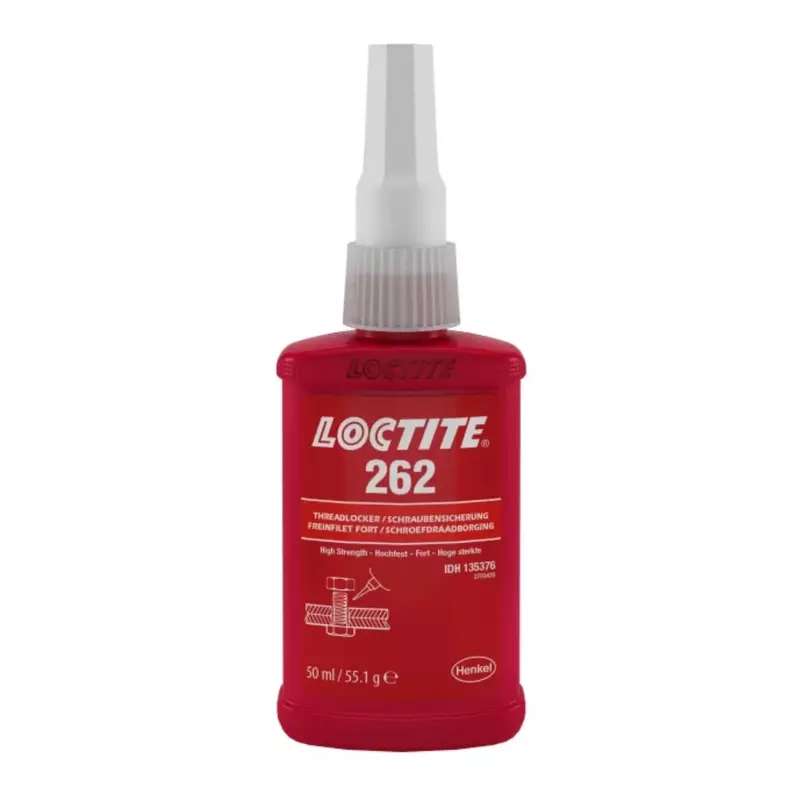

Loctite 26231 Red 262 High-Strength Threadlocker, 1.69 fl. oz. Bottle
Customize
Threadlocker: Red, Liquid, 50 mL bottle. Loctite 26231 (262 Series) is a high-strength anaerobic threadlocker supplied in a 50 mL bottle (1.69 fl. oz). It provides high-strength locking for fasteners up to 3/4 in (gap fill 0.005 in), with a full cure time of 24 hours and a maximum recommended operating temperature up to 300°F. The product is a liquid (physical form) and is removable with heat and hand tools. Typical breakaway torque: 190 lb./inch (M10 steel nuts & bolts after 24 hr at 22°C). Environmental: non-food contact. Standards: ABS Approved; ASTM D-5363; CFIA Approved; MIL-S-46163A Type II Grade O; NSF P1. Container type: bottle; container size range: 1 to 15.9 oz. Series part number: 26231. Application time ~10 min. This product is used to secure threaded fasteners and prevent loosening from vibration and shock in industrial and automotive assemblies.
- Product type :BONDING ADHESIVES
- Package quantity :1
- Country of manufacture: United States
- Package weight :3.01Lbs
Specifications:
| Materials & Construction | |
| Color | Red |
| Material | Dimethacrylate Ester |
| Outer Material | Dimethacrylate Ester |
| Product Details | |
| Breakaway Torque (Lb./Inch) | 190 (M10 Steel Nuts & Bolts After 24 Hr At 22 Deg c) |
| Color | Red |
| Compatible Material | Zinc Dichromate, Stainless Steel, Alloy Steel, Brass |
| Container Size | 50 ml |
| Container Size Range | 1 To 15.9 oz |
| Container Type | Bottle |
| Environmental | Non-Food Contact |
| Fastener Size Range | Up To 0.79 inches; Up To 3/4 |
| Form | Liquid |
| Full Cure Time (Hours) | 24.00 |
| Is Discontinued By Manufacturer | No |
| Item model number | 442-26231 |
| Material | Dimethacrylate Ester |
| Maximum Operating Temperature F | 300.00 |
| National Stock Number | 8030-01-142-9830 |
| Packaging | Bottle |
| Product Service Code | 8040 |
| Removal Method | Hand Tool; Heat |
| Series | 262 |
| Series Part Number | 26231 |
| Standard Pack Qty | 10 |
| Standards | Abs Approved; Astm D-5363; Cfia Approved; Mil-S-46163a Type Ii Grade O; Nsf p1 |
| Strength | High |
| Sizing & Dimensions | |
| Height | 1.2 inches |
| Length | 6 inches |
| Product Dimensions | 6 x 3.7 x 1.2 inches |
| Size | 50 mL |
| Weight | 2.82 ounces |
| Width | 3.7 inches |
| Technical Specifications | |
| Breakaway Torque (Lb./Inch) | 190 (M10 Steel Nuts & Bolts After 24 Hr At 22 Deg c) |
| Fastener Size Range | Up To 0.79 inches; Up To 3/4 |
| Full Cure Time (Hours) | 24.00 |
| Maximum Operating Temperature F | 300.00 |
| Removal Method | Hand Tool; Heat |
