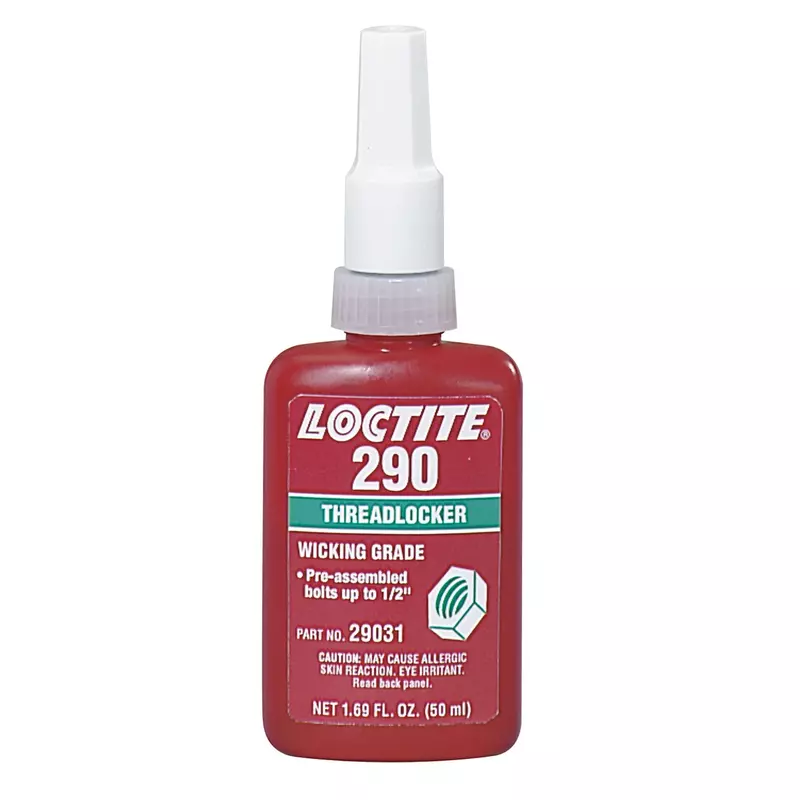

Loctite 29031 290 Green Wicking Grade Threadlockers, 1.69 oz., 50 mL
Customize
Loctite 290 Wicking Grade MIL-SPEC medium-strength green threadlocker in a 50 mL bottle (Series 290, Series Part Number 29031). Penetrates threads by capillary action to secure set screws and pre-assembled bolts up to 1/2" and seals porosities in welds and porous metal parts. Container Type: Bottle; Form: Liquid; Strength: Medium; Full Cure Time: 24 hours. Removal by hand tool or heat. Breakaway Torque: 90 (M10 steel nuts & bolts after 24 hr at 22°C). Environmental: Non-Food Contact. Standards: ANSI 61; ASTM D-5363; CFIA Approved; MIL-S-46163A Type II Grade M; MIL-S-46163A Type II Grade R; NSF 61; NSF P1. Maximum operating temperature: 300°F. Product is commonly used for instrumentation screws, electrical connectors, set screws, and sealing weld porosities.
- Secures set screws and other assemblies after settings are completed
- Mild odor
- Color: Green
- Size: 50 ml
Specifications:
| Materials & Construction | |
| Color | Green |
| Material | Metal |
| Product Details | |
| Breakaway Torque (Lb./Inch) | 90 (M10 Steel Nuts & Bolts After 24 Hr At 22 Deg c) |
| Container Size | 50 ml |
| Container Size Range | 1 To 15.9 oz |
| Container Type | Bottle |
| Environmental | Non-Food Contact |
| Fastener Size Range | Up To 1/2; Up To 12.00 mm |
| Form | Liquid |
| Full Cure Time (Hours) | 24.00 |
| Product Service Code | 8040 |
| Removal Method | Hand Tool; Heat |
| Series | 290 |
| Series Part Number | 29031 |
| Specific Uses For Product | Repair |
| Standards | Ansi 61; Astm D-5363; Cfia Approved; Mil-S-46163a Type Ii Grade M; Mil-S-46163a Type Ii Grade R; Nsf 61; Nsf p1 |
| Strength | Medium |
| Sizing & Dimensions | |
| Height | 6.2 inches |
| Length | 2.2 inches |
| Product Dimensions | 6.2 x 2.2 x 1.3 inches |
| Size | 50 mL |
| Weight | 3.36 ounces |
| Width | 1.3 inches |
| Technical Specifications | |
| Maximum Operating Temperature F | 300.00 |
