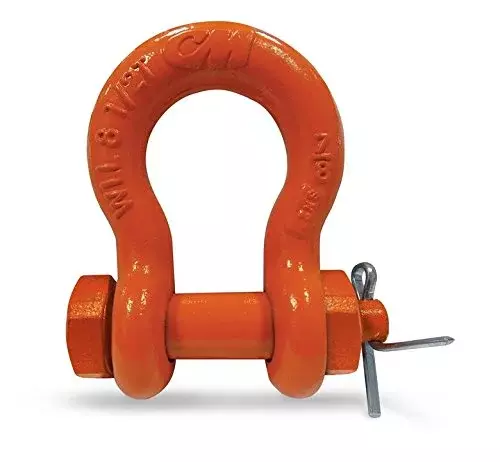

CM M653P Super Strong Anchor Shackle with Orange Powder Coated Screw Pin, 8-1/2 Ton Work Load Limit, 7/8" Size
CM M653P Anchor Shackle (screw pin) — carbon steel with orange powder coat finish. 7/8" size, 8-1/2 ton working load limit, ASME B30.26. Jaw Inside Height 3.31 in; Inside Width 1.44 in; Overall Thickness 2.14 in.
$68.22 $68.22
Customize
Available Quantity
22 Product Details
CM M653P Super Strong Anchor Shackle with Orange Powder Coat Screw Pin. Manufactured from carbon steel (technically advanced micro alloy steel as noted in manufacturer materials), this anchor shackle features an orange powder coat finish, screw-type pin, and durable construction to exceed performance requirements. Precise internal dimensions include Jaw Inside Height: 3.3100 in, Inside Width: 1.4400 in, Overall Thickness: 2.1400 in, Head/Holder Diameter: 0.8750 in. Meets ASME B30.26 standards. Product dimensions recorded: 2.06 x 0.88 x 3.31 inches; weight approx. 3.5 pounds. Designed for heavy-duty lifting and multiple-connection use, the M653P offers traceability markings and high strength consistent with a 6:1 design factor.
- Shackles meet dimensional requirements and exceed performance requirements of RR-C-271
- Working load limit and traceability codes shown as permanent markings on body
- Manufactured from technically advanced micro alloy steel with optimal hardness for strength and ductility
Specifications:
| Materials & Construction | |
| Color | Orange Powder Coat |
| Material | Carbon Steel |
| Outer Material | Carbon Steel |
| Product Details | |
| Finish | Orange Powder Coat |
| Head/Holder Diameter | 0.8750in |
| Inside Width | 1.4400 |
| Jaw Inside Height | 3.3100in |
| Material | Carbon Steel |
| Model Number | M653P |
| Overall Thickness | 2.1400in |
| Pin Type | Screw |
| Shackle Type | Anchor |
| Standards | Asme B30.26 |
| Sizing & Dimensions | |
| Height | 3.31 inches |
| Length | 2.06 inches |
| Product Dimensions | 2.06 x 0.88 x 3.31 inches |
| Weight | 3.5 pounds |
| Width | 0.88 inches |
