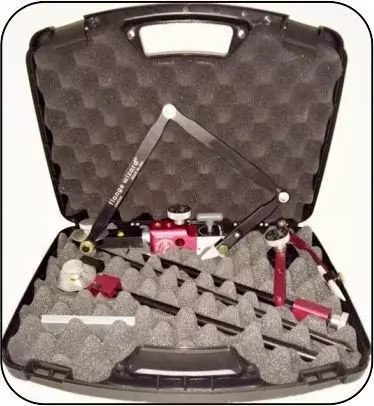

FLANGE WIZARD Miter Marker/Imager combo — two precision layout tools (MSA505 & MHA515) in a durable carrying case for pipe, flange and welding layout. Portable and made in US.
$388.34
Customize
Available Quantity
0
Flange Wizard Combo Cases Two complete tools in one case: Miter Marker Arm Assembly #MSA505 and Multi-Hole Image Tower Assembly #MHA515. The Miter Marker Arm Assembly #MSA505 allows you to telescope out over existing welds to layout angles or change the angles of pipe-fittings to meet special needs. Marking arm is its own 360° rotating shaft with its leveling system built in. The Multi-Hole Image Tower Assembly #MHA515 allows layout of elongated holes in bulkheads for pipe at any angle. Odd angles of saddle holes (ellipse) for pipe branches are made easy Pack of 1
| Materials & Construction | |
| Color | Various |
| Ink Color | Various |
| Product Details | |
| Is Discontinued By Manufacturer | No |
| Item model number | ORSNO189659 |
| Number of Items | 1 |
| Point Type | Chisel |
| Recommended Uses For Product | Drawing |
| Sizing & Dimensions | |
| Height | 3.8 inches |
| Length | 14.8 inches |
| Product Dimensions | 14.8 x 14.7 x 3.8 inches; 5 Pounds |
| Weight | 5 pounds |
| Width | 14.7 inches |
