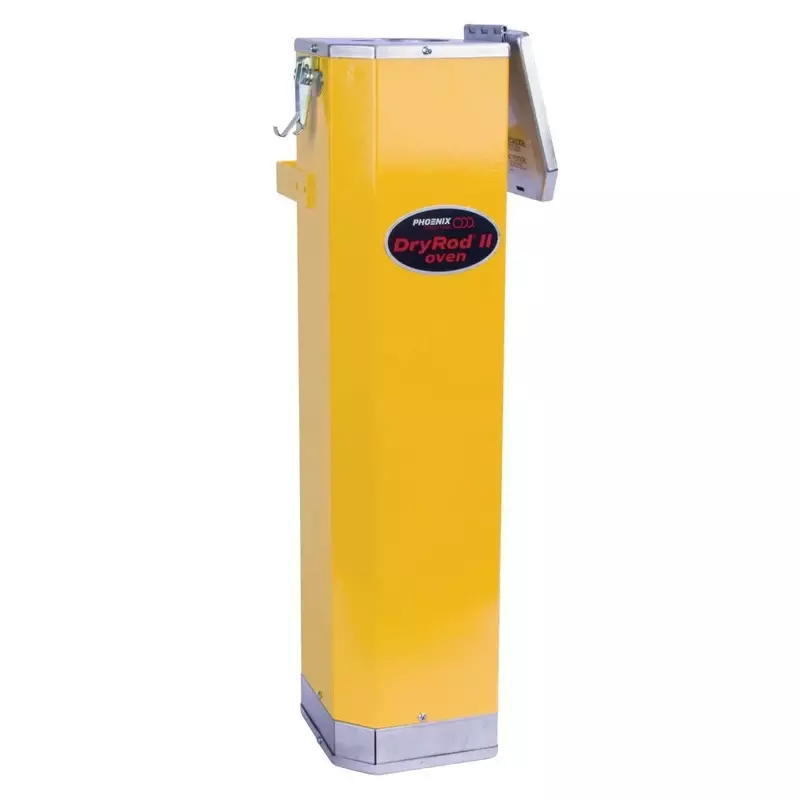

PHOENIX 1205500 Portable Electrode Welding Rod Oven, 10-Electrode, 300°F
Customize
1205500 Model Code: AA (part# 1205500) This item features: -Wire wrap heating element provides even, continuous heat for 100pct protection of electrodes from unpacking to use. -Power inlet module easily accommodates alternative cord sets. -Spring latch tightly secures insulated lid. -Safety yellow color ensures high visibility from a distance. -Rod elevator easily extracts welding rods from oven on Type 1 & 2. -Standard features include an adjustable thermostat, and a 120/240 Voltage selector switch. -Indicator light signifies ''power on.''. -Insulation Thickness: 1 1/2 in. -Phase: Single. -Color: Yellow. -Material: Steel. -Finish: Powder Coated. -Price is for 1 Each. Testing and approvals: -Designed for cUL (Canadian) and CE approval. Model Code Model Description AAType:1, Capacity Wt.:10 lb, Temp. Range:300.0 F [Max], Chamber Size:2 7/8 in Dia. x 19 3/4 in Depth, Voltage:120.00 V, Voltage Type:AC/DC, Watts:75.00 W, Width:5 3/4 in, Depth:7 1/4 in, Height:23 in, Wt.:12 lb ABType:1, Capacity Wt.:10 lb, Temp. Range:300.0 F [Max], Chamber Size:2 7/8 in Dia. x 19 3/4 in Depth, Voltage:120.00 V, Voltage Type:AC/DC, Watts:75.00 W, Width:5 3/4 in, Depth:7 1/4 in, Height:23 in, Wt.:12 lb ACType:1, Capacity Wt.:10 lb, Temp. Range:300.0 F [Max], Chamber Size:2 7/8 in Dia. x 19 3/4 in Depth, Voltage:240.00 V, Voltage Type:AC, Watts:75.00 W, Width:5 3/4 in, Depth:7 1/4 in, Height:23 in, Wt.:12 lb ADType:15 w/Wheels, Capacity Wt.:150 lb, Temp. Range:100.0 F [Min], 300.0 F [Max], Chamber Size:14 in Dia. x 19 3/4 in Depth, Voltage:120.00 V, 240.00 V, Voltage Type:AC, Watts:600.00 W, Digital Thermometer:No, Width:19 3/4 in, Depth:21 3/4 in, Height:28 in, Wt.:81 lb AEType:15 w/Wheels, Capacity Wt.:150 lb, Temp. Range:100.0 F [Min], 300.0 F [Max], Chamber Size:14 in Dia. x 19 3/4 in Depth, Voltage:120.00 V, 240.00 V, Voltage Type:AC, Watts:600.00 W, Digital Thermometer:Yes, Width:19 3/4 in, Depth:21 3/4 in, Height:28 in, Wt.:81 lb AFType:2, Capacity Wt.:20 lb, Temp
Specifications:
| Materials & Construction | |
| Color | Yellow |
| Finish | Powder Coated |
| Insulation Thickness | 1 1/2 in. |
| Material | Steel |
| Outer Material | Steel |
| Product Details | |
| Electrode Capacity | 10.0 |
| Maximum Operating Temperature | 300 |
| Minimum Operating Temperature | 300 |
| Outside Width | 7 |
| Oven Type | Portable Welding Oven |
| Sizing & Dimensions | |
| Height | 28 inches |
| Length | 21.75 inches |
| Product Dimensions | 21.75 x 19.75 x 28 inches |
| Weight | 11.4 pounds |
| Width | 19.75 inches |
| Technical Specifications | |
| Power Source | Corded Electric |
| Specification Met | cul |
| Usage | Professional |
| Voltage | 120/240 V |
| Voltage Type | AC/DC |
| Warrant y Type | Manufacturer Limited Warranty |
| Wattage | 75 watts |
