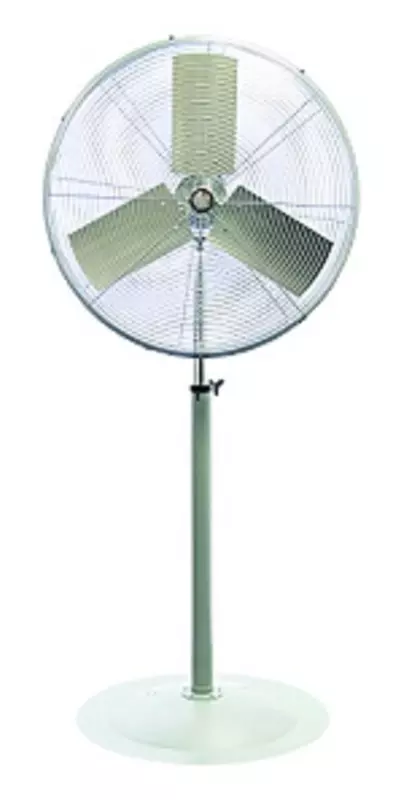

TPI Corporation ACU-30-P Unassembled Industrial Circulator and Pedestal Mount, Single Phase, 30" Diameter, 120 Volt,Grey

This TPI Corporation ACU-30-P unassembled industrial circulator head has a 30" blade diameter, includes a pedestal mount, and is suitable for providing directed air circulation. It has a 2-speed, 120V, 2.7 amp, single phase, 1/4 hp, permanently lubricated, totally enclosed ball bearing motor with permanent split capacitor and a 12' SJT (Service Junior, Thermoplastic) three-conductor cord with a three-prong plug for connecting to grounded electric outlets. The blade assembly, consisting of a steel hub and spider, holds the fan head's three aluminum paddles, which are enclosed by front and rear powder-coated steel wire guards for strength and resistance to corrosion. The pedestal mount can be positioned horizontally or vertically for precise direction of air flow. The permanent split capacitor (PSC) motor provides both starting torque and the ability to run at variable speeds. The motor of the TPI workstation fan is totally enclosed, making it suitable for use in conditions that standard, unenclosed motors are not, such as in the presence of dust or other airborne debris. This industrial circulator is Intertek Testing Services (ETL) listed for safety.SpecificationsMotor2-speed, 120V, 2.7 amp, single phase, 1/4 hp, permanently lubricated, totally enclosed ball bearing motor with permanent split capacitorSwitch typePull chainCord12' SJT type three-conductor cordBladesAluminum (3)Blade guardsSteel spiral wireCubic feet per minute (CFM)7,900 / 1,100Weight78 Lbs.Specifications metETL ListedIndustrial fans are used in workplace environments to exhaust fumes or direct air flow. Most industrial fans have coated metal parts and lubricated motors that are permanently sealed to help protect against environmental hazards, such as dirt and airborne debris or corrosive fumes. They can have fan blade cages that meet workplace safety standards, as well as a variety of mounting mechanisms for precise placement to direct large volumes of air flow. Electronic circuitry for industrial fans matches the power specifications found in the workplace and provides the initial torque needed to start up a large blade fan. Industrial fans are used in warehouses, gyms, and other commercial environments to ventilate spaces and to circulate air.TPI Corporation manufactures industrial and commercial electrical heaters, process heat ovens, ventilation products and fans, lighting equipment, and thermostatic controls. The company, founded in 1950, is headquartered in Johnson City, TN.WHAT'S IN THE BOX? * Motor * Blades * Guard * Pedestal mount

• Manufactured by TPI Corporation: Produced by TPI Corporation, a trusted manufacturer of industrial and commercial electrical products, the heater reflects the commitment to quality and reliability associated with the TPI brand.
• Safety First - TPI products are ready for use with all certifications.
• Leading the Industry - TPI is a leader in heating and cooling products for industrial settings, takes pride in making the highest quality, premium, reliable heating and cooling products on the market.
• Efficient Air Flow: With high air flow capacity, TPI units provides effective circulation, distributing heat evenly across the space for optimal comfort.
• High-Quality Construction: Made with premium materials; built to withstand the demands of industrial environments; offering excellent resistance to wear; corrosion; and mechanical stress.
