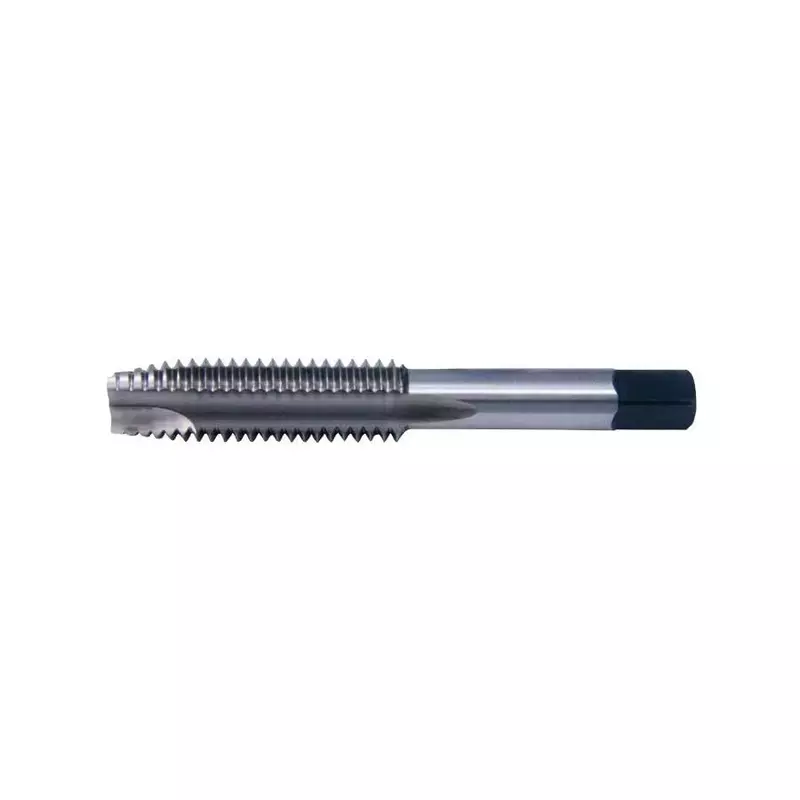

Spiral Point Tap: 3/4-10 UNC, 3 Flutes, Plug Chamfer, HSS, Bright/Uncoated Coated
Customize
Spiral Point Tap: 3/4-10 UNC, 3 Flutes, Plug Chamfer, HSS, Bright/Uncoated Coated 2" Thread Length, 4-1/4" OAL, Right Hand, H3, Series 0411, Thread Size (Inch): 3/4-10 , Thread Standard: UNC , Chamfer: Plug , Material: HSS , Thread Limit: H3 , Coating/Finish: Bright/Uncoated , Thread Direction: Right Hand , Coolant Through: No , Number Of Flutes: 3 , Material Application: Steel; Cast Iron; Non-Ferrous Metal , Oversize: No , Interrupted Thread: No , Threads per Inch: 10 , Overall Length (Inch): 4-1/4 , Overall Length (Decimal Inch): 4.2500 , Thread Pitch (Decimal Inch): 0.1 , Material Grade: M2 , Thread Length (Decimal Inch): 2.0000 , Thread Length (Inch): 2 , Thread Length (mm): 50.80 , Shank Diameter (mm): 14.99 , Shank Diameter (Decimal Inch): 0.5900 , Application: Through-Hole Threading , Measurement Type: Fractional Inch , Square Size (mm): 17.46 , Series: 0411 , Style: Spiral Point , Product Service Code: 5136 , UNSPSC Code: 23241600
- Made in United States
- Manufacturer: Cle-Line
- Threading
Specifications:
| Materials & Construction | |
| Material | Hss |
| Outer Material | Hss |
| Style | Spiral Point |
| Product Details | |
| Application | Through-Hole Threading |
| Chamfer | Plug |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Interrupted Thread | No |
| Material | Hss |
| Material Application | Steel; Cast Iron; Non-Ferrous Metal |
| Material Grade | M2 |
| Measurement Type | Fractional Inch |
| Number Of Flutes | 3 |
| Oversize | No |
| Product Service Code | 5136 |
| Series | 0411 |
| Shank Diameter (Decimal Inch) | 0.5900 inches |
| Square Size (Mm) | 17.46 mm → 0.69 inches |
| Style | Spiral Point |
| Thread Direction | Right Hand |
| Thread Limit | H3 |
| Thread Size (Inch) | 3/4-10 |
| Thread Standard | Unc |
| Threads Per Inch | 10 |
| UNSPSC Code | 23241600 |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 1 x 1 inches |
| Size | 3/4-10 |
| Thread Length (Decimal Inch) | 2.0000 inches |
| Thread Length (Inch) | 2 |
| Thread Length (Mm) | 50.80 mm → 2.00 inches |
| Thread Pitch (Decimal Inch) | 0.1 |
| Weight | 1 pounds |
| Width | 1 inches |
| Technical Specifications | |
| Coating/Finish | Bright/Uncoated |
| Material Grade | M2 |
| Number Of Flutes | 3 |
| Shank Diameter (Mm) | 14.99 mm → 0.59 inches |
| Square Size (Mm) | 17.46 mm → 0.69 inches |
| Style | Spiral Point |
| Thread Limit | H3 |
| Threads per Inch | 10 |
