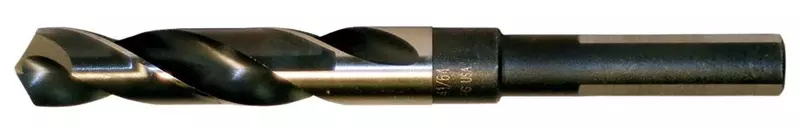

CLE-LINE Reduced Shank Drill, 37/64" HSS C17035
Customize
Cle-Line 1877 Silver & Deming Reduced Shank Drill, High Speed Steel, Black & Gold Finish, Reduced Flatted Shank, 118° Split Point, 37/64" (Pack of 1). 118 degree split point. 3 flats on 1/2" reduced shank. Black and gold finish. Reduced Shank Drill Bit: 0.58'' Dia, 1/2'' Shank Dia, 118° Split Point, High Speed Steel. Flats on Shank, 3-1/8" Flute Length, Shank Diameter (Decimal Inch): 0.5000, Tool Material: High-Speed Steel, Point Type: Split, Shank Type: Weldon Flat, Flute Length (Inch): 3-1/8, Overall Length (Inch): 6, Coating/Finish: Coated, Series: 1877, Number Of Flats: 3, Drill Bit Size (Decimal Inch): 0.5800, Shank Diameter (mm): 12.70, Shank Diameter (Inch): 1/2, Flute Type: Spiral, Number Of Flutes: 2, Tool Performance: General Purpose, Drill Length Type: Reduced Shank, Shank Length (Decimal Inch): 2.2500, Primary Workpiece Material: Cast Iron, Steel.
- Made in the USA
- Inch sizes only
- HSS substrate
- Black and gold finish
- 3 flats on 1/2" reduced shank
- 118 degree split point
Specifications:
| Materials & Construction | |
| Color | Black and Gold |
| Finish Type | Black and Gold |
| Material | High Speed Steel (HSS) |
| Outer Material | High Speed Steel (HSS) |
| Shank Type | Reduced Flatted |
| Product Details | |
| Coating/Finish | Coated |
| Drill Bit Size (Decimal Inch) | 0.5800 |
| Drill Length Type | Reduced Shank |
| Drill Point Angle | 118 |
| Flute Length (Inch) | 3-1/8 |
| Flute Type | Spiral |
| Number Of Flats | 3 |
| Number Of Flutes | 2 |
| Point Type | Split |
| Primary Workpiece Material | Cast Iron, Steel |
| Series | 1877 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Mm) | 12.70 |
| Shank Length (Decimal Inch) | 2.2500 |
| Shank Length (Mm) | 57.15 |
| Shank Type | Weldon Flat |
| Tool Material | High-Speed Steel |
| Tool Performance | General Purpose |
| Sizing & Dimensions | |
| Height | 1.1 inches |
| Length | 6.7 inches |
| Product Dimensions | 6.7 x 1.2 x 1.1 inches |
| Size | 37/64" (0.58 Inches) |
| Weight | 1 pounds |
| Width | 1.2 inches |
| Technical Specifications | |
| Cutting Angle String | 118 Degrees |
| Cutting Diameter | 0.58 Inches |
