Precision Brand 19740 Steel Thickness Feeler Gage Poc-Kit Assortment, 1/2" Width, 5" Length, 20 Blades
Customize

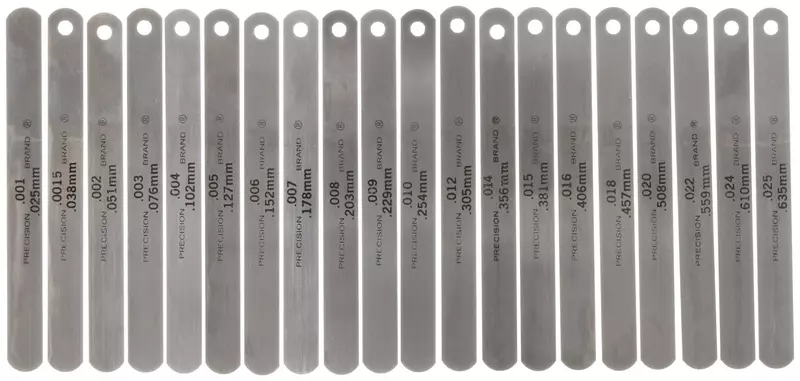

Precision Brand 19740 Steel Thickness Feeler Gage Poc-Kit Assortment combines precision measurement and durable construction for manufacturing and maintenance applications. This 20-piece set contains one blade of each thickness: 0.001", 0.0015", 0.002", 0.003", 0.004", 0.005", 0.006", 0.007", 0.008", 0.009", 0.010", 0.012", 0.014", 0.015", 0.016", 0.018", 0.020", 0.022", 0.024", and 0.025". Blades are 1/2" (0.5000 inches) wide with a 5" (5.0000 inches) leaf length, made from high-carbon spring steel (C1095). Ends are rounded and edges smoothed for safety; each blade is clearly etched with thickness in metric and decimal. The set is packaged in a sturdy vinyl case with individual blade pockets that folds flat for convenient storage and transport. Ideal for setting close spacing and checking extremely tight tolerances in industrial, maintenance, and manufacturing environments.
- Ends are rounded and edges are smooth for safety
- Each blade is clearly etched with thickness in metric and decimal
- Packaged in a sturdy, vinyl case with individual blade pockets that conveniently folds flat
- Made from 1/2" wide C1095 close grain, high carbon spring steel
- Contains 1 of each thickness: 0.001", 0.0015", 0.002", 0.003", 0.004", 0.005", 0.006", 0.007", 0.008", 0.009", 0.010", 0.012", 0.014", 0.015", 0.016", 0.018", 0.020", 0.022", 0.024", and 0.025"
Specifications:
| Materials & Construction | |
| Color | Metallic |
| Material | Steel |
| Outer Material | Steel |
| Product Details | |
| Closed Length (Decimal Inch) | 5.0000 inches |
| Closed Width (Decimal Inch) | 0.5000 inches |
| Fractional Leaf Length | 5 |
| Item model number | 19740 |
| Leaf Length (Decimal Inch) | 5.0000 inches |
| Leaf Style | Parallel |
| Leaf Width (Decimal Inch) | 0.5000 inches |
| Maximum Thickness (Decimal Inch) | 0.0250 inches |
| Minimum Thickness (Decimal Inch) | 0.0010 inches |
| Number Of Leaves | 20 |
| Tapered Or Parallel | Parallel |
| Thicknesses Included (Decimal Inch) | 0.0010; 0.0015; 0.0020; 0.0030; 0.0040; 0.0050; 0.0060; 0.0070; 0.0080; 0.0090; 0.0100; 0.0120; 0.0140; 0.0150; 0.0160; 0.0180; 0.0200; 0.0220; 0.0240; 0.0250 |
| Unspsc Code | 41111617 |
| Width (Mm) | 0.5 inches |
| Sizing & Dimensions | |
| Height | 0.65 inches |
| Length | 7.4 inches |
| Product Dimensions | 7.4 x 4.9 x 0.65 inches |
| Size | 5" Length |
| Weight | 8.96 ounces |
| Width | 4.9 inches |
| Technical Specifications | |
| Leaf Style | Parallel |
| Number Of Leaves | 20 |
| Thicknesses Included (Decimal Inch) | 0.0010; 0.0015; 0.0020; 0.0030; 0.0040; 0.0050; 0.0060; 0.0070; 0.0080; 0.0090; 0.0100; 0.0120; 0.0140; 0.0150; 0.0160; 0.0180; 0.0200; 0.0220; 0.0240; 0.0250 |
