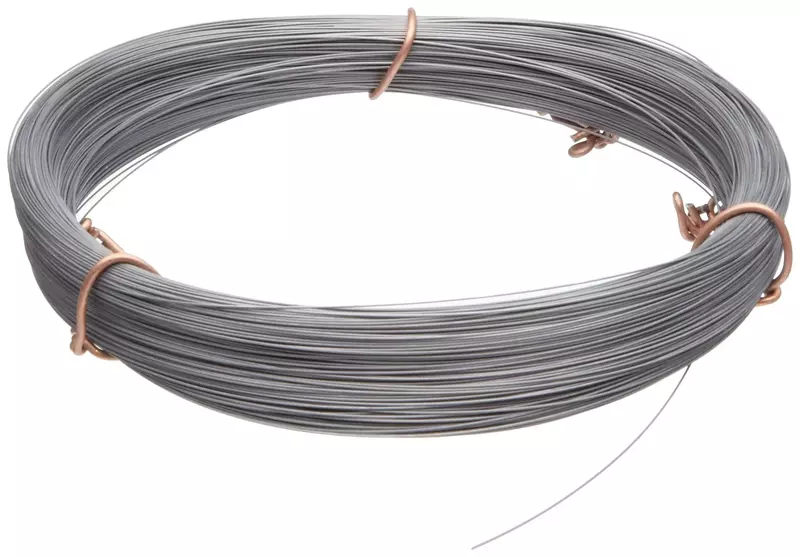

Small Parts 21222 High Carbon Steel Wire, #2B (Smooth) Finish, Full Hard Temper, ASTM A228, 0.022" Diameter, 193' Length
PRECISION BRAND high-carbon music wire, Gauge 9 (0.022 in) full-hard temper with #2B smooth finish. 1/4 lb coil (~193 ft). High tensile strength (≈345–382 ksi). Ideal for springs, wire forms and industrial uses.
$22.24 $22.24
Customize
Available Quantity
8 Product Details
Steel Wire; Wire Type: Tempered Music Wire Coil; Gauge: 9; Material: High-Carbon Steel; Material Grade: C1085; Overall Diameter: 0.022; Overall Length: 194.00; Diameter Tolerance: +/-0.0003 in; Finish: Plain; Container Type: Coil; Elongation: Elongation Not Rated / Tensile 345-382 ksi; Hardness: Extra Hard. Packaged wire is shrink wrapped, bar coded, and packaged in an easy to use pull-type dispenser box. Precision Brand Music Wire is spring tempered and made from high carbon steel alloy. Applications include springs, wire forms, control linkages, armature binding, ceramic cutting, and a variety of industrial uses.
- 1/4 lb Coil
- Tensile strength - 345-375 ksi (min. - max.)
- Applications include springs, wire forms, control linkages, armature binding, ceramic cutting, and a variety of industrial uses
- High tensile strength and high fatigue resistance
- Precision Brand Music Wire is spring tempered and made from high carbon steel alloy
Specifications:
| Materials & Construction | |
| Color | Silver |
| Material | High-Carbon Steel |
| Outer Material | High-Carbon Steel |
| Product Details | |
| Container Type | Coil |
| Diameter Tolerance | +/-0.0003 in |
| Elongation | Elongation Not Rated / Tensile 345-382 Ksi |
| Finish | Plain |
| Finish Type | #2B Smooth |
| Gauge | 9 |
| Hardness | Extra Hard |
| Material | High-Carbon Steel |
| Material Grade | C1085 |
| Overall Diameter | 0.022 inches |
| Tensile Strength | 382000 PSI |
| Wire Type | Tempered Music Wire Coil |
| Sizing & Dimensions | |
| Length | 2328.00 inches |
| Product Dimensions | N/A |
| Size | One Size |
| Weight | 5.28 ounces |
| Technical Specifications | |
| Included Components | steel-wire |
| Item Package Dimensions L x W x H | 5.2 x 5.04 x 1.06 inches |
| Number of Items | 1 |
| Style | Solid |
| Warranty | Warranty |
