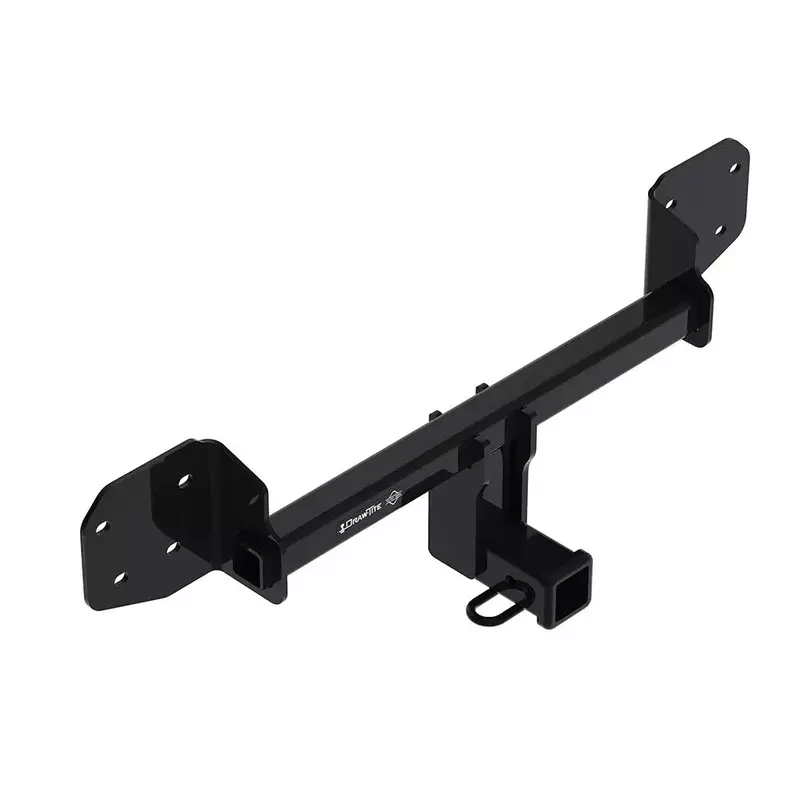

Draw-Tite 76227 Class 3 Trailer Hitch, 2 Inch Square Receiver, Compatible with 2010-2019 Subaru Outback, Wagon Except Sport
Customize
Draw-Tite Class 3 Trailer Hitches are the perfect mix of style and stability for those times when you’re working on a home project or heading out on an adventure. This Draw-Tite Class 3 receiver hitch is rated for up to 4,000 lbs. gross trailer weight (GTW) and up to 600 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. Each Draw-Tite trailer hitch tow package is designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a square 2-inch receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and backed by a nationwide lifetime limited warranty. Draw-Tite towing hitches are tested to exceed V-5 and SAE J684 standards. Draw-Tite: North America’s Favorite Hitch. Technical & sizing details (from ProductDatabase): Product dimensions (L x W x H) — 36.85 x 19.00 x 8.35 inches. Product weight — 35.00 pounds. Model/Part Number: 76227. Constructed from alloy steel with a black powder coat finish. Rated towing capacity up to 4,000 lbs GTW and 600 lbs TW. Includes mounting hardware and lifetime limited warranty.
- VEHICLE APPLICATION: 2010-2019 Subaru Outback.
- CAPACITY: Tow hitch package rated for up to 4,000 lbs. GTW and up to 600 lbs. TW. NOT suitable for use with Weight Distribution systems.
- TESTED: Draw-Tite tow hitch receivers are tested to meet and exceed V-5 and SAE J684 standards.
- MAXIMUM STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse. Protected by a two-part black powder coat finish to resist rust and corrosion.
- CUSTOM DESIGNS: Draw-Tite Class 3 trailer hitch tow packages are custom built according to manufacturer specifications to ensure a perfect fit.
Specifications:
| Materials & Construction | |
| Color | Black (Powder Coated Finish) |
| Material | Alloy Steel |
| Product Details | |
| Automotive Fit Type | Vehicle Specific Fit |
| Finish Type | Powder Coated |
| GTIN | 016118150988 |
| Included Components | Draw-Tite 76227:Max-Frame Receiver |
| Item Type Name | TOW_HITCH |
| Manufacturer Part No | 76227 |
| Material Type | Alloy Steel |
| Maximum Towing Capacity | 599.7 Pounds |
| OEM Equivalent Part Number | 76227 |
| Pull Force | 4000 Pounds |
| Unit Count | 1.0 Count |
| UPC | 016118150988 |
| Vehicle Service Type | Sport-Utility-Vehicles, Trailer, Truck, Van |
| Sizing & Dimensions | |
| Height | 8.35 inches |
| Length | 36.85 inches |
| Product Dimensions | 36.85 x 19.00 x 8.35 inches |
| Weight | 35 pounds |
| Width | 19.00 inches |
| Technical Specifications | |
| Manufacturer Warranty Description | Lifetime |
| Pull Force | 4000 Pounds |
