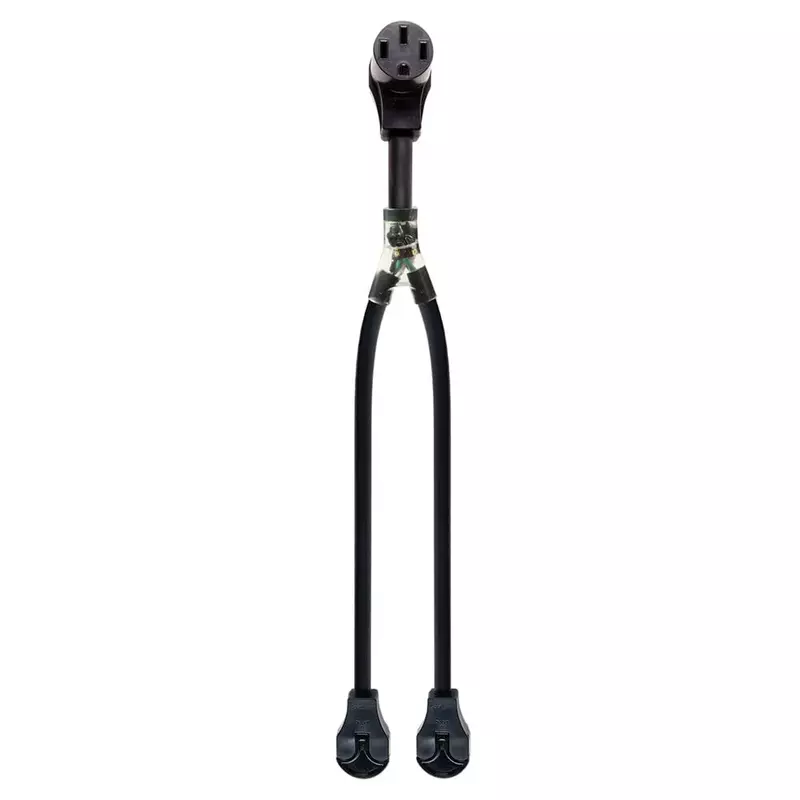

Southwire Surge Guard 44670 Amp Up! 50A - 30A Y-Adapter
Southwire Amp-Up! Y-Adapter (44670) converts two 30A circuits into a 50A 240V/50A outlet for RVs. Indicator lights and Easy-T-Pull handles let RVs use air conditioners and appliances when only 30A service is available.
$41.36 $41.36
Customize
Available Quantity
31 Product Details
The Amp-Up! RV Y-Adapter (Southwire 44670) plugs into two 30A outlets on separate circuits to provide a 240V/50A service outlet, enabling RVs with 50A service to run air conditioners and appliances when only 30A service is available. Indicator lights are provided for each 30A plug when power is applied. The adapter allows full use of RV appliances and features Easy-T-Pull handles for easier removal. The product meets NEMA and safety specifications (NEMA, UL, cUL) and is constructed of plastic and rubber components. Connector type is plug-in with NEMA 14-50R plug receptacle, 2 poles and 2 wires. Unit Count: 1.
- NOTE: The Amp-Up! Y-Adapter is not a protective device and the connected RV will not be protected from damage should an open neutral or surge develop during the course of operation
- Options for running both air conditioners: Option 1 – Two 30As on separate circuits. Option 2 – One 30A and one 20A adapter on second 30A
- Two 30A 120V straight blade male plugs
- One 50A 120/240V straight blade female receptacle
Specifications:
| Materials & Construction | |
| Color | black |
| Material | Plastic, Rubber |
| Outer Material | Plastic, Rubber |
| Product Details | |
| Amperage | 30 Amps |
| Connector Type | Plug-in |
| Global Trade Identification Number | 00024098446700 |
| GTIN | 024098446700 |
| Material Type | Plastic, Rubber |
| Number Of Poles | 2 |
| Number Of Wires | 2 |
| Plug Type | NEMA 14-50R |
| Product Grade | New |
| Specification Met | NEMA, UL, cUL |
| Unit Count | 1 Count |
| UPC | 024098446700 |
| Sizing & Dimensions | |
| Height | 4.5 inches |
| Length | 14.5 inches |
| Product Dimensions | 14.5 x 7.5 x 4.5 inches |
| Product Weight | 0.03 pounds |
| Weight | 0.48 ounces |
| Width | 7.5 inches |
