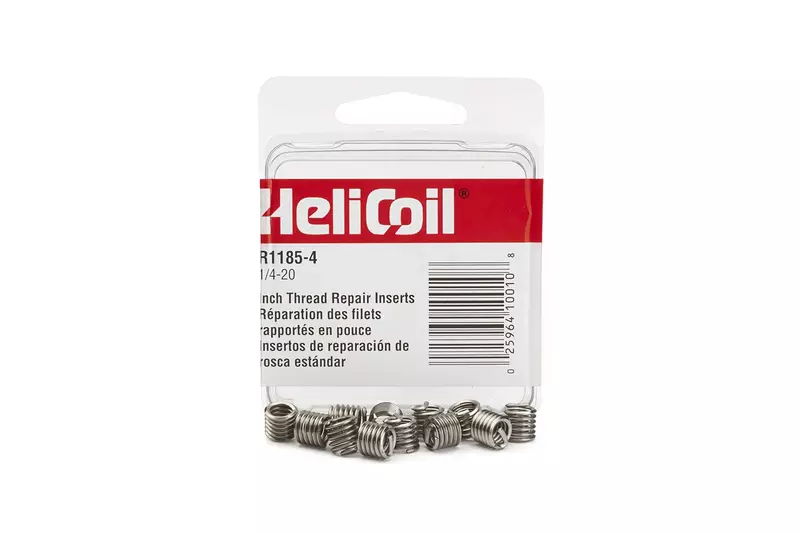

HELICOIL R1185-4 R-Pack Free-Running Insert 1/4-20, 0.375 in OAL
HELICOIL R1185-4 R-Pack free-running helical threaded inserts, 1/4-20 UNC, 0.375 in overall length, stainless steel, tanged design — 12 inserts per pack for thread repair and reinforcement.
$16.41 $16.41
Customize
Available Quantity
13 Product Details
Free Running Insert: 1/4-20, 0.375" OAL Tanged, Stainless Steel, Bright/Uncoated. HeliCoil R1185-4 R-Pack provides complete coverage of inch thread repair sizes for coarse-inch threads. Insert features: Thread Size (Inch): 1/4-20; Thread Standard: UNC; Overall Insert Length (Decimal Inch): 0.3750 (3/8"); Tang: Tanged; Material: Stainless Steel; Number of Free Coils: 5-3/4; Length to Diameter Ratio: 1-1/2D; Insert Package Part Number: R1185-4; Number Of Inserts: 12; Coating/Finish: Bright/Uncoated. Heli-coil offers master thread repair capability for repairing or reinforcing damaged threads. Made for industrial and maintenance applications. Warranty: 90 day warranty on material and workmanship.
- Heli-coil has complete coverage of inch thread repair sizes
- Master thread repair kit
- Inch coarse
- Made in the USA
Specifications:
| Materials & Construction | |
| Color | Factory |
| Material | Stainless Steel |
| Outer Material | Stainless Steel |
| Product Details | |
| Coating/Finish | Bright/Uncoated |
| Fastener Type | Thread Repair Nut |
| Length To Diameter Ratio | 1-1/2d |
| Material | Stainless Steel |
| Metal Type | Alloy Steel |
| Number Of Free Coils | 5-3/4 |
| Number Of Inserts | 12 |
| Overall Insert Length (Decimal Inch) | 0.3750 |
| Overall Insert Length (Fractional Inch) | 3/8 |
| Tang | Tanged |
| Thread Size | 1/4-20 |
| Thread Standard | Unc |
| Sizing & Dimensions | |
| Height | 1.0000 inches |
| Length | 1.0000 inches |
| Product Weight | 0.32 ounces |
| Size | 1/4-20 |
| Weight | 0.96 ounces |
| Width | 1.0000 inches |
| Technical Specifications | |
| Grade Rating | industrial |
| Thread Coverage | Complete |
| Thread Type | Inch Coarse |
| Warranty | 90 day warranty on material and workmanship |
