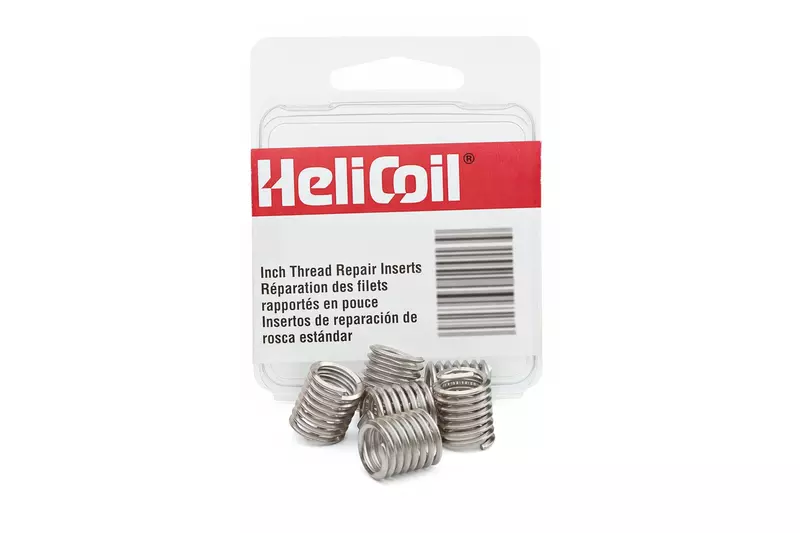

Helicoil Helical Insert, 304SS, 7/16-14, PK6
Customize
Helicoil free-running helical insert designed for threaded repair and reinforcement. Internal thread size 7/16-14 (UNC) with a 0.656" overall insert length (Insert Length: 0.656 in). Tanged, made of stainless steel with a bright/uncoated finish. Insert package part number R1185-7, pack quantity 6. Product features include 7-3/8 number of free coils and a length-to-diameter ratio of 1-1/2D. From manufacturer specifications: internal thread size 7/16-14, thread type UNC, thread direction right hand, free coil diameter 0.539 in, recommended tap size 7/16-14 STI, aluminum drill size 29/64 in. These inserts are intended for metal applications and offer tensile properties and hardness suitable for repair uses. Package dimensions approximately 2.6 x 2.5 x 0.7 inches; package weight about 0.8 ounces. Country of origin: China.
- The package width is 6.096 centimeters
- The package height is 1.777 centimeters
- The package length is 6.604 centimeters
- Country of Origin: China
Specifications:
| Materials & Construction | |
| Color | Factory |
| Exterior Finish | Aluminum,Metal,Stainless Steel |
| Material | Stainless Steel, Aluminum, Metal |
| Product Details | |
| Coating/Finish | Bright/Uncoated |
| Insert Length | 0.656 in |
| Insert Package Part Number | R1185-7 |
| Length To Diameter Ratio | 1-1/2d |
| Number Of Free Coils | 7-3/8 |
| Number Of Inserts | 6 |
| Overall Insert Length (Decimal Inch) | 0.6560 |
| Tang | Tanged |
| Thread Size | 7/16-14 in |
| Thread Size (Inch) | 7/16-14 |
| Thread Standard | Unc |
| Sizing & Dimensions | |
| Height | 0.7 inches |
| Length | 2.6 inches |
| Product Dimensions | 2.6 x 2.5 x 0.7 inches |
| Size | 7/16-14 |
| Weight | 0.8 ounces |
| Width | 2.5 inches |
| Technical Specifications | |
| Fastener Type | Insert |
