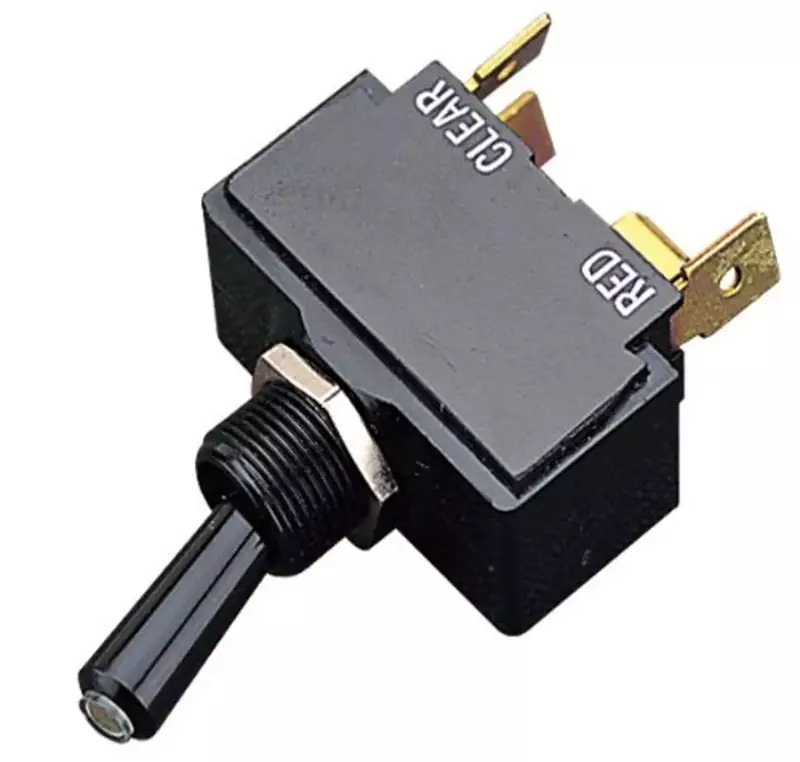

Sea Dog 420121-1 Light Tip Toggle Switch, On/Off / SPST
Sea-Dog 420121-1 light tip toggle switch (SPST), panel-mount, metal/plastic construction with brass contact; lights white when off and red when on; 12V, 15A, IP54 protection.
Non-returnable
$17.14 $17.14
Customize
Available Quantity
1 Product Details
The Sea-Dog 420121-1 Light Tip Toggle Switch is a durable panel-mount SPST switch featuring stamped brass contacts and injection-molded nylon/polycarbonate construction. It lights white in the off position and red in the on position for clear visual status. Rated for 12 Volts and 15 Amps, this switch meets VDE specifications and carries an IP54 international protection rating for ingress resistance. The unit is designed for automotive, powersports, and general electrical applications where a reliable on/off toggle is required. Includes Sea-Dog branded component; unit count 1. Sea-Dog is a multi-generational company established in 1933 and recognized for quality and efficiency in marine and automotive electrical products.
- Voltage: 12
- 15 Amps. 12 Volts
- SPST circuit
- Stamped brass/injection molded nylon/polycarbonate
Specifications:
| Materials & Construction | |
| Color | Black |
| Contact Material | Brass |
| Material | Metal, Plastic |
| Product Details | |
| Circuit Type | 2-way |
| Connector Type | Quick Connect |
| Contact Material | Brass |
| Contact Type | Normally Closed |
| Control Type | ON-OFF |
| Global Trade Identification Number | 00035514420006 |
| Included Components | SEADOG |
| International Protection Rating | IP54 |
| Item Type Name | Sea Dog 420121-1 Light Tip Toggle Switch, On/Of / SPST |
| Material Type | Metal, Plastic |
| Model | 3004.4047 |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operation Mode | ON-OFF |
| Specification Met | VDE |
| Switch Type | Power Diode |
| Unit Count | 1.0 Count |
| Warranty Description | See manufacturer |
| Sizing & Dimensions | |
| Height | 1.25 inches |
| Length | 4.94 inches |
| Product Dimensions | 4.94 x 1.88 x 1.25 inches |
| Product Weight | 0.06 pounds |
| Weight | 0.96 ounces |
| Width | 1.88 inches |
| Technical Specifications | |
| Compatible Devices | Any device using a SPST toggle switch with a 15A, 12V rating |
| Compatible with Vehicle Type | Various Vehicles |
| Current Rating | 15 Amps |
| Lower Temperature Rating | 28 Degrees Fahrenheit |
| Maximum Current | 15 Amps |
| Operating Voltage | 12 Volts |
| Upper Temperature Rating | 78 Degrees Fahrenheit |
| Voltage | 12 Volts |
