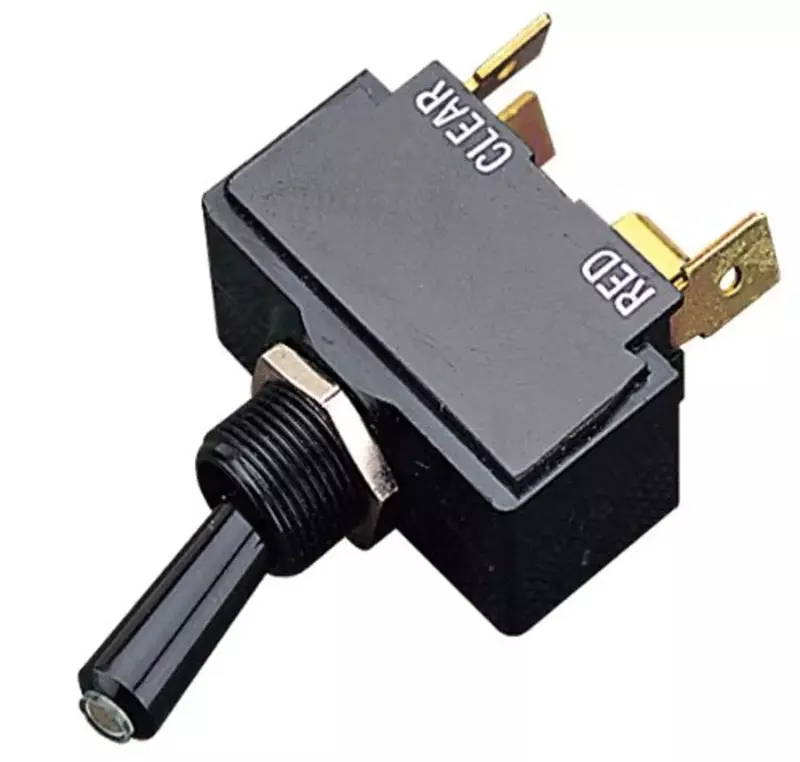

Sea Dog 420123-1 Light Tip Toggle Switch, On/Off/On / SPDT 1 Count (Pack of 1)
SEA-DOG Light Tip Toggle Switch (420123-1) — SPDT toggle switch, panel mount, 12 Volts, 15 Amps; light tips illuminate white (off) and red (on). Ideal for marine electrical applications.
$18.73 $18.73
Customize
Available Quantity
16 Product Details
Stamped brass/injection molded nylon/polycarbonate SPDT toggle switch. 3/8" x 1/2" mounting footprint. Rated 15 Amps at 12 Volts. Light tip toggles illuminate white in the off position and red in the on position. Panel-mount design, quick-connect terminals. Materials include metal (brass contact) and plastic (injection molded nylon/polycarbonate). Sea-Dog (Sea-Dog Line) is a multi-generation marine products company established in 1933 with multiple industry awards. Includes one unit. LIMITED WARRANTY applies.
- Stamped brass/injection molded nylon/polycarbonate
- SPDT circuit
- 15 Amps. 12 Volts
Specifications:
| Materials & Construction | |
| Contact Material | Brass |
| Material | Metal, Plastic |
| Product Details | |
| Circuit Type | SPDT |
| Compatible Devices | Any devices that use SPDT, 15 Amps, 12 Volts toggle switch |
| Compatible with Vehicle Type | Marine Vehicles |
| Connector Type | Quick Connect |
| Contact Material | Brass |
| Contact Type | Normally Open |
| Control Type | Basic On/Off |
| GTIN | 035514422598 |
| Included Components | SEADOG |
| Item Type Name | Sea Dog 420123-1 Light Tip Toggle Switch, On/Off/On / SPDT |
| Material | Metal, Plastic |
| Material Type | Metal, Plastic |
| Mounting Type | Panel Mount |
| Number of Positions | 3 |
| Operation Mode | Off |
| Switch Type | SPDT, Toggle Switch |
| Terminal | Spdt |
| Unit Count | 1.0 Count |
| Warranty Description | LIMITED WARRANTY |
| Sizing & Dimensions | |
| Height | 1.25 inches |
| Length | 4.94 inches |
| Product Dimensions | 4.94 x 1.88 x 1.25 inches |
| Weight | 0.96 ounces |
| Width | 1.88 inches |
| Technical Specifications | |
| Connector Type | Quick Connect |
| Current Rating | 15 Amps |
| Maximum Current | 15 Amps |
| Operating Voltage | 12 Volts |
| Voltage | 12 Volts |
