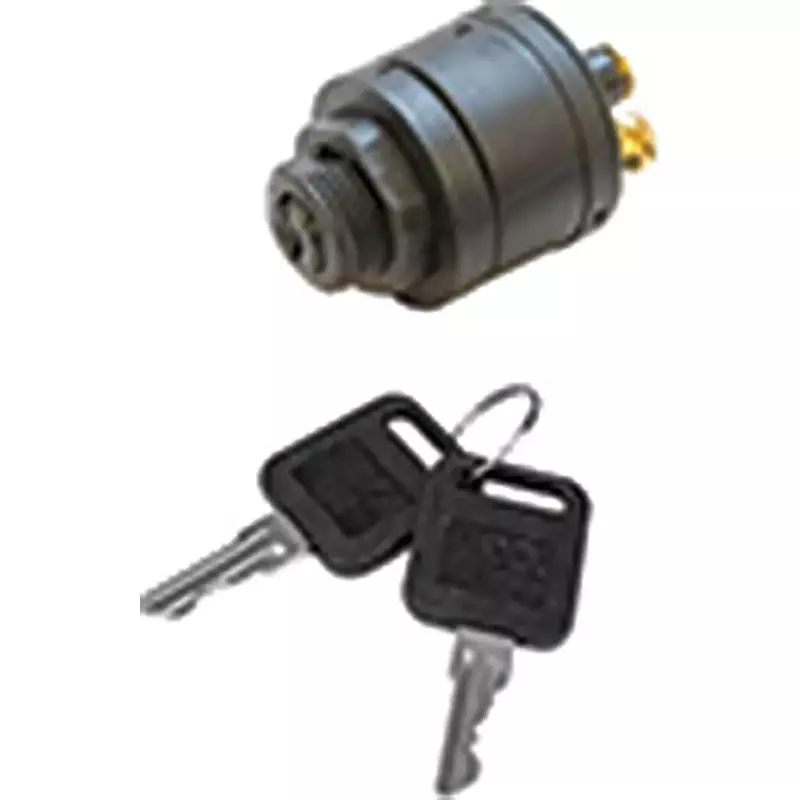

SEA-DOG 3-position ignition switch (Model 420381-1). Polypropylene construction, screw terminals, magneto-style; short shaft (13/16" x 5/8"). Ideal for marine and powersports electrical applications.
$17.72
Customize
Available Quantity
5
Sea-Dog 420381-1 Three Position Ignition Switch-Magneto Style. Polypropylene construction with plastic contact material and screw terminals. Operates in Off–Ign.–Start–Choke positions; short shaft design (13/16" x 5/8"); 3 positions; 6 screw terminals. IP54 rated. Sea-Dog Line is a 3rd generation family company founded in 1933, recognized for quality and efficiency. Model 420381-1, GTIN/UPC 035514423687. Includes SEADOG. Warranty: LIMITED WARRANTY.
| Materials & Construction | |
| Color | Black |
| Material | Polypropylene |
| Outer Material | Polypropylene |
| Product Details | |
| Actuator Type | Ignition |
| Circuit Type | 3-way |
| Connectivity Protocol | X-10 |
| Connector Type | Screws |
| Contact Material | Plastic |
| Contact Type | Normally Open & Normally Closed |
| Included Components | SEADOG |
| International Protection Rating | IP54 |
| Material Type | Polypropylene |
| Model | 420381-1 |
| Number of Positions | 3 |
| Switch Type | Ignition Switch |
| Terminal | Screw |
| Sizing & Dimensions | |
| Height | 1.5 inches |
| Item Dimensions | 5.81 x 3.88 x 1.5 inches |
| Length | 5.81 inches |
| Product Dimensions | 5.81 x 3.88 x 1.5 inches |
| Product Weight | 0.2000 |
| Weight | 3.20 ounces |
| Width | 3.88 inches |
| Technical Specifications | |
| GTIN | 035514423687 |
| Item Type Name | Sea Dog 420381-1 Three Position Ignition Switch-Magneto Style |
| Warranty | LIMITED WARRANTY |
