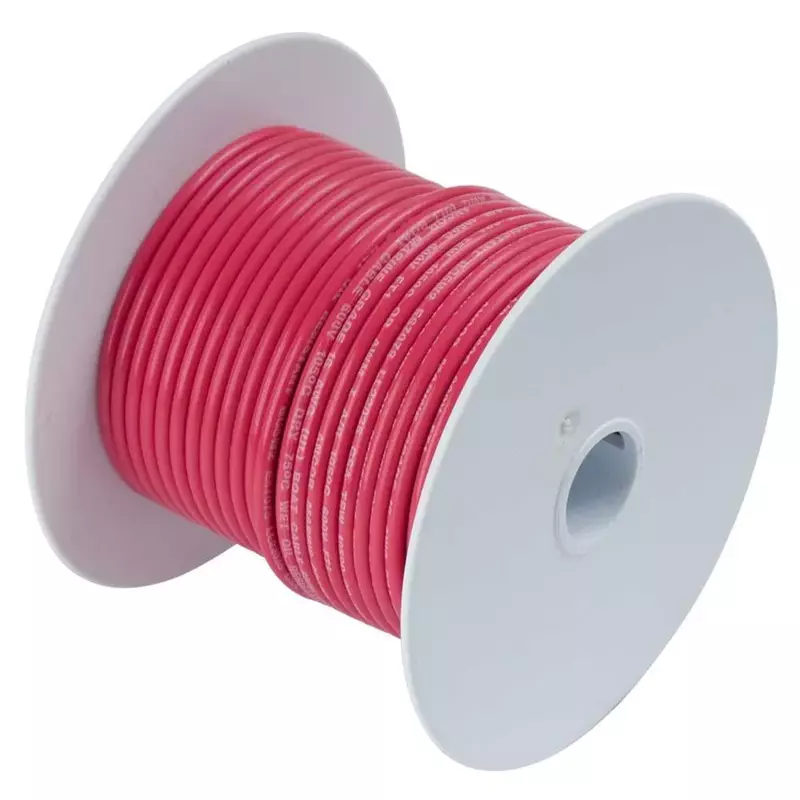

Ancor 113502 Tinned Copper Battery Cable, 4 AWG (19mm2), Red - 25ft
Ancor 4 AWG tinned copper marine battery cable (25 ft) in red. Ultra-flexible Type 3 stranding with premium vinyl insulation rated 600V/105°C; resists corrosion, saltwater, battery acid and UV. Exceeds UL 1426, USCG & ABYC standards.
$62.92 $62.92
Customize
Available Quantity
14 Product Details
Ancor 113502 Tinned Copper Battery Cable, 4 AWG (19mm2), Red - 25ft. Tinned-copper stranding provides maximum protection against corrosion and electrolysis and offers superior flexibility and fatigue resistance. Premium vinyl insulation resists saltwater, battery acid, oil, gasoline, heat, abrasion and UV radiation, rated at 600 volts / 105°C. Ultra-flexible Type 3 stranding resists fatigue due to vibration and flexing. Manufactured from individual copper strands and tinned for harsh marine environments. Exceeds UL 1426, USCG Charter boat (CFR title 46) and ABYC standards. Includes 25 feet of red 4 AWG marine grade wire.
- They are constructed with premium vinyl insulation that is rated at 600 volts, 105 deg C dry and 75 deg C wet, stays flexible even in extreme cold (-40 deg F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation
- Exceeds all UL 1426, US Coast Guard Charter boat (CFR title 46) and ABYC standards
- Ultra-flexible Type 3 stranding resists fatigue from vibration and provides added corrosion protection
- Manufactured from individual copper strands and tinned to perform in the harshest marine environments
- 25 Feet of Red 4 AWG marine grade wire
Specifications:
| Materials & Construction | |
| Color | Red |
| Material | Copper |
| Outer Material | Copper |
| Product Details | |
| Cable Length | 25 Feet |
| Color | Red |
| Gauge | 4 |
| Included Components | Ancor 113502 Tinned Copper Battery Cable, 4 AWG (19mm2), Red - 25ft |
| Material | Copper |
| Model Name | Ancor 113502 Tinned Copper Battery Cable, 4 AWG (19mm2), Red - 25ft |
| No. of wires | 1 |
| Number of Cable Strands | Copper |
| Number of Items | 1 |
| Style | 4 Awg |
| Voltage | 600 Volts |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 5 inches |
| Length | 7 inches |
| Product Dimensions | 7 x 7 x 5 inches |
| Size | 25 Feet |
| Weight | 1.3 pounds |
| Width | 7 inches |
| Technical Specifications | |
| Sport Type | Boating |
| Voltage Rating | 600 Volts |
