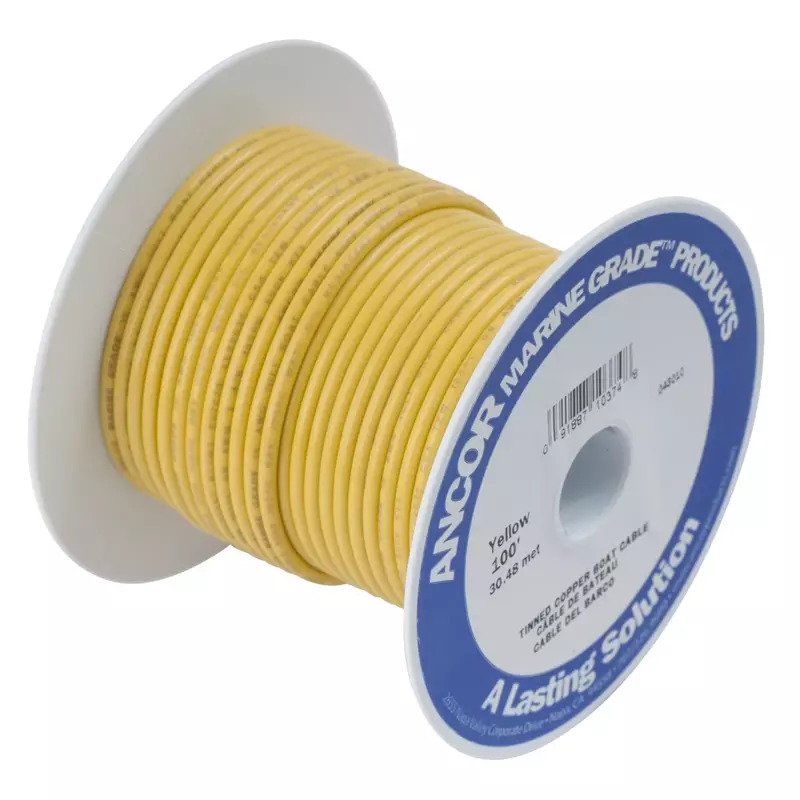

Ancor 107040 Tinned Copper Wire, 12 AWG (3mm2), Yellow - 400ft
ANCOR tinned copper 12 AWG (3mm2) marine-grade wire, 400ft, yellow. 600V/105°C vinyl insulation, ultra-flexible to -40°F, resists saltwater, battery acid, oil, gasoline, abrasion and UV. UL/ABYC compliant.
$153.63 $153.63
Customize
Available Quantity
1 Product Details
Ancor 107040 Tinned Copper Wire, 12 AWG (3mm2) — 400ft of marine-grade, tinned copper conductor with premium vinyl insulation rated at 600 volts, 105°C dry and 75°C wet. The ultra-flexible Type 3 stranding resists fatigue from vibration and provides added corrosion protection. Manufactured from multiple copper strands and tinned for optimal performance in harsh marine environments; insulation remains flexible in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and UV. Exceeds UL 1426, USCG (CFR title 46) and ABYC standards. Includes 1 unit (400ft) colored yellow for easy identification.
- They are constructed with premium vinyl insulation that is rated at 600 volts, 105 deg C dry and 75 deg C wet, stays flexible even in extreme cold (-40 deg F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation
- Exceeds all UL 1426, US Coast Guard Charter boat (CFR title 46) and ABYC standards
- Ultra-flexible Type 3 stranding resists fatigue from vibration and provides added corrosion protection
- Manufactured from individual copper strands and tinned to perform in the harshest marine environments
- 400 Feet of Yellow 12 AWG marine grade wire
Specifications:
| Materials & Construction | |
| Color | Yellow |
| Material | Copper |
| Outer Material | Copper |
| Product Details | |
| Global Trade Identification Number | 00091887801521 |
| GTIN | 091887801521 |
| Included Components | Item |
| Material Type | Copper |
| Number of Cable Strands | Multi Strand |
| Number Of Wires | 1 |
| Strands | Multi Strand |
| Unit Count | 1.0 Count |
| UPC | 091887801521 |
| Voltage | 600 Volts |
| Sizing & Dimensions | |
| Height | 4.8000 inches |
| Length | 6.1000 inches |
| Product Dimensions | 4.8 x 6.0 x 6.1 inches |
| Weight | 1 pounds |
| Width | 6.0000 inches |
| Technical Specifications | |
| Voltage | 600 Volts |
