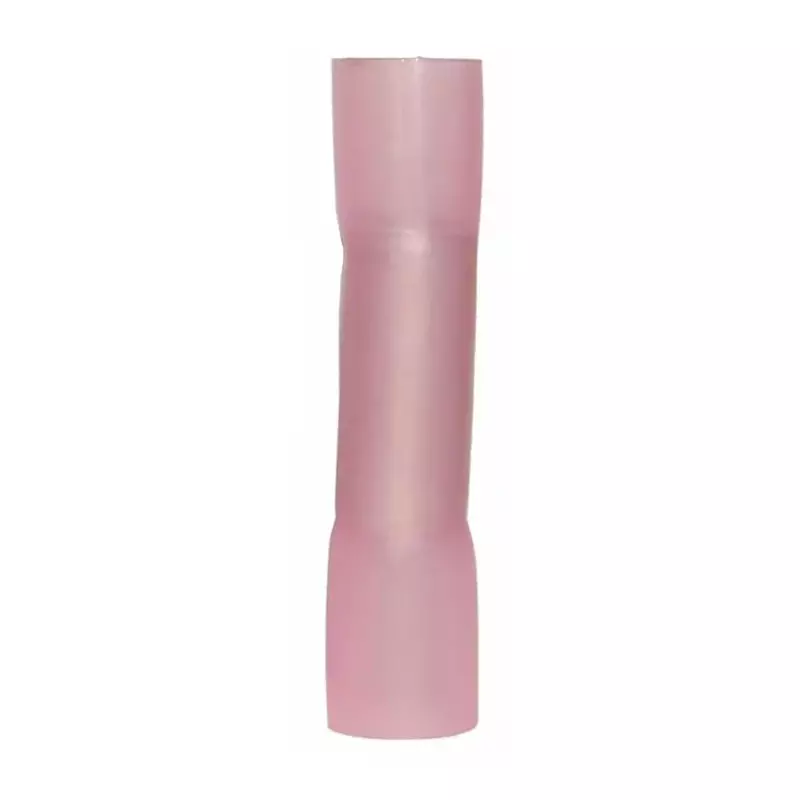

Ancor 309303 Heat Shrink Butt Connector #8 - 3 Pack
Ancor 309303 heat shrink butt connectors (#8, 3-pack) with heat-activated adhesive sleeve for a watertight seal, tinned copper contacts for maximum current flow, and vibration/strain relief.
$7.99 $7.99
Customize
Available Quantity
7 Product Details
Ancor heat shrink connectors offer heat-activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a watertight seal and provide vibration and strain relief. Features include a brazed seam for maximum strength, pure copper contacts for maximum current flow and tinned finish for corrosion resistance. Gauge: 8 AWG. Heat shrink: Yes. Package Qty: 3. Style: Heat Shrink. Connector type: Butt Splice. Insulation material: Polyolefin. Contact material: Copper. UL recognized. Temperature rating: 221 degree fahrenheit.
- Ul listed and csa recognized
- Shrinks to form a water tight seal and the ultimate vibration and strain relief
- Heat activated adhesive built into the sleeve of the heat shrink tubing. Brazed seam for maximum strength
- Pure Copper for maximum current flow
- Tinned for corrosion resistance
Specifications:
| Materials & Construction | |
| Color | 8 AWG |
| Contact Material | Copper |
| Insulation Material | Polyolefin |
| Material | Plastic |
| Product Details | |
| Connector Type | Butt Splice |
| Contact Material | Copper |
| Gauge | 8 Awg |
| Heat Shrink | Yes |
| Included Components | Heat Shrink Butt Connectors (3) |
| Insulation Material | Polyolefin |
| Material | Plastic |
| Size | 3 Pack |
| Specification Met | UL |
| Style | Heat Shrink |
| Temperature Rating | 221 degree fahrenheit |
| Terminal | Butt Terminal |
| Type | Butt Connectors |
| Sizing & Dimensions | |
| Height | 0.5000 inches |
| Item Dimensions Lx Wx H | 1.63 x 4 x 0.5 inches |
| Length | 4.0000 inches |
| Product Dimensions | 1"L x 1"W x 1"H |
| Product Weight | 0.0300 |
| Weight | 0.48 ounces |
| Width | 1.6300 inches |
| Technical Specifications | |
| Specification Met | UL |
| Temperature Rating | 221 degree fahrenheit |
