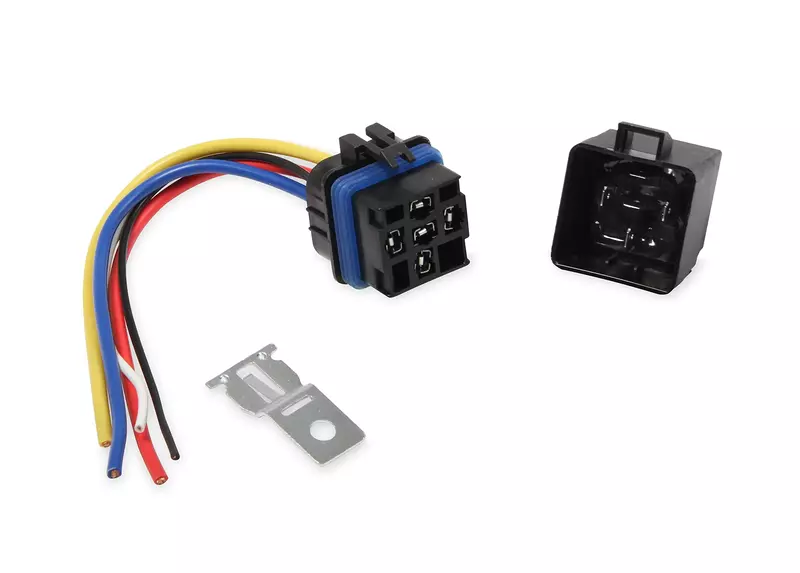

Mr. Gasket 40100G Waterproof Relay 12V DC/30 Amp Continuous/40 Amp Momentary 7 in. Long Wiring Pigtail Waterproof Relay
Mr. Gasket 40100G waterproof automotive relay with 7-inch pigtail harness; 12V coil, 30A continuous / 40A momentary rating; plug-in connector and mounting bracket included.
Non-returnable
$26.90 $26.90
Customize
Available Quantity
3 Product Details
Mr Gasket 40100G Waterproof Relay 12V DC/30 Amp Continuous/40 Amp Momentary 7 in. Long Wiring Pigtail Waterproof Relay. Features include mounting bracket, 7-inch pigtail harness with five wires (three 12-gauge and two 18-gauge), plug-in connector, silver contact material, 12V coil voltage, 30 Amp continuous contact current rating and 40 Amp maximum switching current. Ideal for automotive replacement applications requiring a waterproof relay and pigtail assembly. Includes one unit and relevant mounting hardware. Warranty: Warranty.
- Mounting Bracket Included Wiring Guide:(3) 12 gauge wires on blue (30 common), yellow (87 normally open), red (87a normally closed)(2) 18 gauge wires on black (85 ground) & white (86 +12V)
- 7 Pigtail Harness
- 5 Wires
- 12V DC
- 40 AMP Max Load & 30 AMP Continuous Load
Specifications:
| Materials & Construction | |
| Material | Silver |
| Product Details | |
| Connector Type | Plug-In |
| Contact Material | Silver |
| Contact Type | Normally Open |
| Global Trade Identification Number | 00090127025604 |
| Included Components | Mr Gasket 40100G Waterproof Relay 12V DC/30 Amp Continuous/40 Amp Momentary 7 in. Long Wiring Pigtail Waterproof Relay |
| Item Type Name | Mr Gasket 40100G Waterproof Relay 12V DC/30 Amp Continuous/40 Amp Momentary 7 in. Long Wiring Pigtail Waterproof Relay |
| Model | 40100G |
| Part Interchange Info | 40100G |
| Part Number | 40100G |
| Unit Count | 1.0 Count |
| UPC | 090127025604 |
| Sizing & Dimensions | |
| Height | 1.5 inches |
| Length | 7.0 inches |
| Size | 7 x 4 x 1.5 inches |
| Weight | 3.84 ounces |
| Width | 4.0 inches |
| Technical Specifications | |
| Coil Voltage | 12 Volts |
| Contact Current Rating | 30 Amps |
| Current Rating | 30 Amps |
| Maximum Switching Current | 40 Amps |
| Maximum Switching Voltage | 12 Volts |
| Mounting Type | Boat Mount |
| Operation Mode | Off |
| Wattage | 360 watts |
