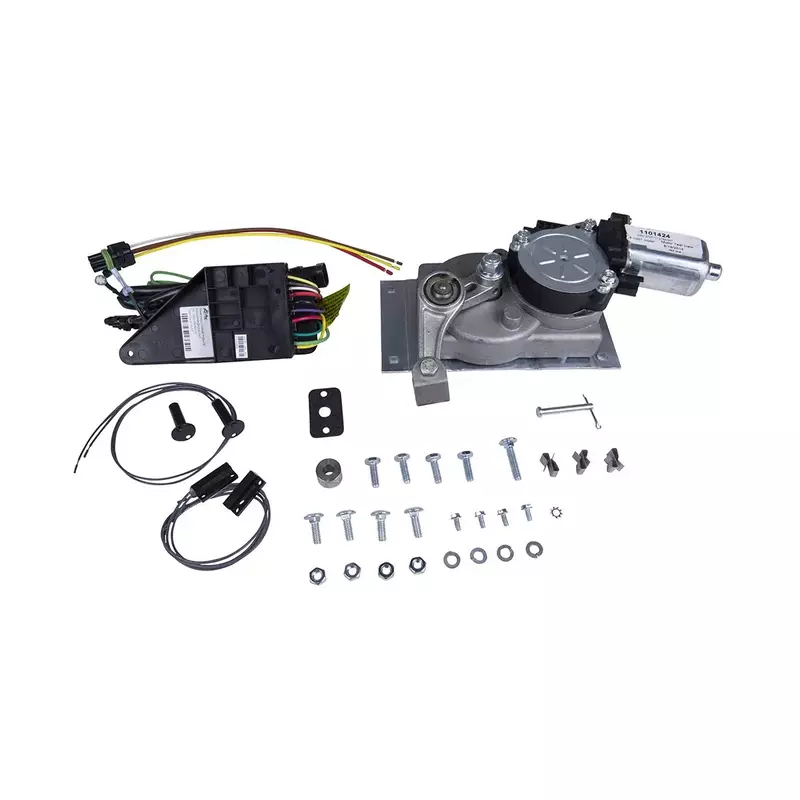

Kwikee Step Motor Conversion Kit for B Linkage, Replacement Parts for Kwikee 22, 23, 28A, 30, 32, 33, 34, 35, 36, 38, 40 series - 379769
Customize
The Kwikee Step Motor, Gearbox Upgrade kit is an electric step improvement. Features: • The Integrated Motor/Gear Box/Linkage (IMGL) offers improved performance and longer life. • 40% more motor torque gives step a strong lock-out and solid feel. • Fully-sealed dual ball bearing improves efficiency and requires no maintenance. Case halves seal to keep consistent alignment and protect gear from the elements. • Investment cast zinc-plated steel linkage assembly is strong and more resistant to corrosion. The brass spherical outer cage hardened ball in the linkage is stronger, wears longer and will not oblong. • The 9510 Control Unit keeps the step open when the door is open. Step can be locked in the extended position, but cannot be locked in the retracted position. Automatic ignition override makes step follow the door. • Note: This is Kwikee Part Number 909772000
- Replacement "B" Integrated Motor/Gear Box Linkage Kit and Control Unit For Kwikee Step Series 28, 31, 37
- This replacement kit contains an IMGL (integrated motor/gear box/linkage assembly, a Control Unit, four-way pigtail, and fastener kit.
- Replacement kit for 28/31/37/39 Step Series; Step is not included with this repair kit
- “B" Linkage Gearbox.Fit Type: Universal Fit
Specifications:
| Materials & Construction | |
| Material | Brass |
| Outer Material | Brass |
| Product Details | |
| GTIN | 098854095341 909534000909 088805721917 098854097727 |
| Included Components | Clevis, Controller, Linkage Assembly, Motor, Mounting Hardware, Pin, Switch, Switch Mounting Plate |
| Item Type Name | Kwikee Electric Step Motor Conversion Kit for "B" Linkage |
| Model | 909772000 |
| Model Name | KW909772 |
| Unit Count | 1.0 Count |
| Sizing & Dimensions | |
| Height | 3.0000 inches |
| Length | 9.0000 inches |
| Product Weight | 8 Pounds |
| Weight | 8.0000 pounds |
| Width | 5.0000 inches |
| Technical Specifications | |
| Warranty | 1 Year |
