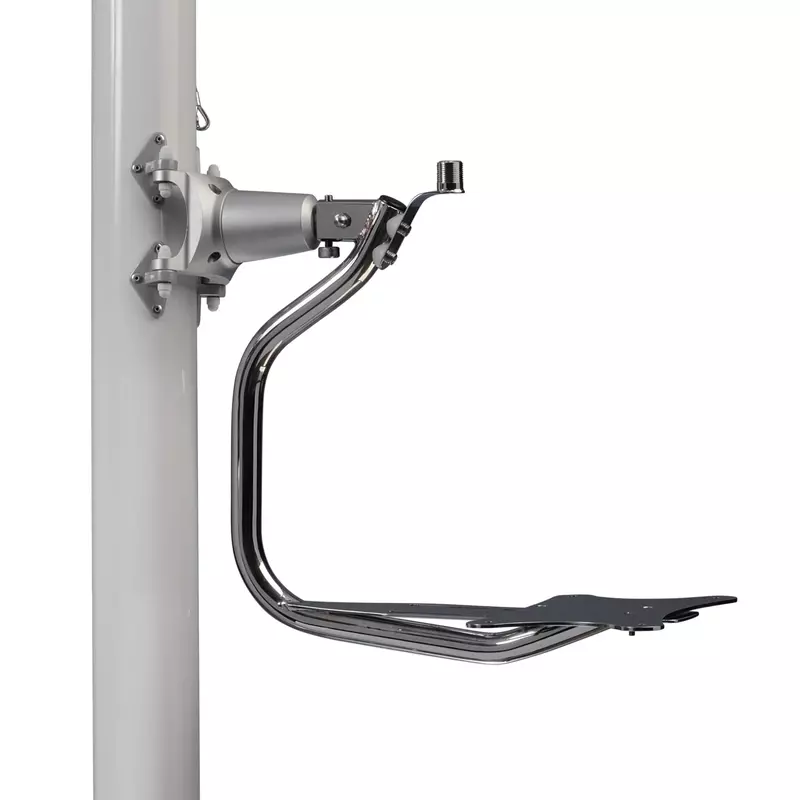

Scanstrut LMM-1 Self-Leveling Radar Mount for Marine Radomes
Customize
Scanstrut LMM-1 Self-Leveling Radar Mount for 2kW/4kW Raymarine, Garmin, and Navico BR24/3G/4G Radomes - Mast-Mounted. The Self-Levelling Mast Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture. Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in the heel angle of the boat whilst eliminating all small oscillations. Features: Hydraulic damping to eliminate minor oscillations; Sealed system - entirely maintenance-free; Passive system - no power required; Reduced weight aloft - complete system weighs only 3.4 kg (8.1 lbs.); Easy upgrade from fixed mast mount - same mounting footprint as SC20 & M92722; Attached to the mast by four swivel feet - matches the profile of any mast; 12 point fixing - highest quality Monel rivets; Compact mount - radar extends only minimum distance from front of mast. Materials/Construction: Finest quality machined and anodised aluminium mast adapter; Marine grade 316 stainless steel cradle and base plate. Kit Includes: 1 x Levelling mount, 1 x Mast Adapter, 1 x Complete fastening pack.
- Stainless radome cradle has a fine tune adjustment for different mast rake angles
- Attaches to mast with four swivel feet, matching a variety of mast profiles
- Reduced weight aloft – complete system weighs only 3.4 kg (8.1 lbs.)
- Main leveling unit features a fine turned damping system which reacts to major changes in heel angle of the boat, entirely maintenance free and no power is required
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Stainless Steel |
| Outer Material | Stainless Steel |
| Product Details | |
| Compatible Devices | Camera |
| Construction | Stainless Steel |
| Frequency Bands Supported | 8.0-12.5 GHz, 18.0-27.0 GHz, 27.0-40.0 GHz |
| Included Components | Scanstrut LMM-1 Self-Leveling Radar Mount for 2kW/4kW Raymarine, Garmin, and Navico BR24/3G/4G Radomes - Mast-Mounted |
| Model Name | Scanstrut LMM-1 Self-Leveling Radar Mount for 2kW/4kW Raymarine, Garmin, and Navico BR24/3G/4G Radomes - Mast-Mounted |
| Number of Items | 1 |
| Power Source | Not Obtainable (depends on the radar detector it is mounted on) |
| Style | Scanstrut LMM-1 Self-Leveling Radar Mount for 2kW/4kW Raymarine, Garmin, and Navico BR24/3G/4G Radomes - Mast-Mounted |
| Type | Self Leveling |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 7.09 inches |
| Length | 20.47 inches |
| Product Dimensions | 20.47 x 18.9 x 7.09 inches |
| Size | No Size |
| Weight | 11.023 pounds |
| Width | 18.9 inches |
| Technical Specifications | |
| Frequency Bands Supported | 8.0-12.5 GHz, 18.0-27.0 GHz, 27.0-40.0 GHz |
| Power Source | Not Obtainable (depends on the radar detector it is mounted on) |
| Warranty | Warranty |
