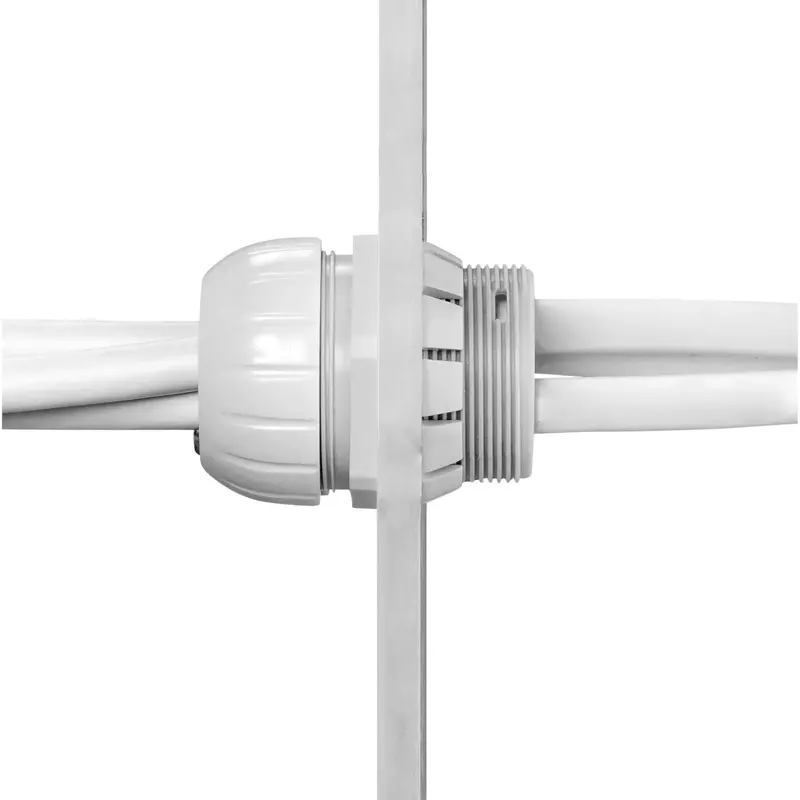

Scanstrut TBH-4 Through Bulkhead Seal - Up to 5 Cables
Customize
Scanstrut TBH-4 Through Bulkhead Cable Seal. The Through Bulkhead Cable Seal is the best way of providing a waterproof through-bulkhead seal for multiple electrical cables. Typical installation scenarios include sealing of windlass power and control cables through forward bulkheads or navigation equipment cables into aft lockers. Moulded in high strength nylon with an over moulded internal seal, the product is quick and easy to fit. Fitting times are significantly shorter than any current products available and only one person is required to complete the installation, with access from only one side of the bulkhead. Features include IP67 waterproof rating, multi-functional shaped profile for impact resistance and an outer dome providing additional water shield. Fits up to four (4) cables (size diameter .28" to .6" / 7 to 15 mm), cutout 2.35" (60 mm). Maximum wall thickness 0.39" to 1.37" (10 to 35 mm). Color: Grey/Silver. Material: Plastic. In the box: Cable seal, two (2) seals, mounting hardware, installation manual. Type: Deck Seal.
- Fitting times are significantly shorter than any current products available and only one person is required to complete the installation, with access from only one side of the bulkhead
- Moulded in high strength nylon with an over moulded internal seal, the product is quick and easy to fit
- Typical installation scenarios include sealing of windlass power and control cables through forward bulkheads or navigation equipment cables into aft lazarette lockers
- The TBH-4 provides IP67 waterproof cable routing and anchoring for up to 4 cables and will fit to any bulkhead, from 10mm to 35mm (0.39" to 1.37") thickness
- Made in the USA
- Plastic
Specifications:
| Materials & Construction | |
| Color | Silver |
| Material | Plastic |
| Product Details | |
| Included Components | Scanstrut TBH-4 Through Bulkhead Seal - Up to 5 Cables |
| Model Name | Scanstrut TBH-4 Through Bulkhead Seal - Up to 5 Cables |
| Number of Items | 1 |
| Size | Standard |
| Style | Scanstrut TBH-4 Through-Bulkhead Seal for Up to 4 Cables |
| Type | Deck Seal |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2.95 inches |
| Item Dimensions Lx Wx H | 3.94 x 2.95 x 2.95 inches |
| Length | 3.94 inches |
| Product Dimensions | 3.94 x 2.95 x 2.95 inches |
| Weight | 7.41 ounces |
| Width | 2.95 inches |
| Technical Specifications | |
| Fitment | Fits up to four (4) cables. Cable diameter: 0.28" to 0.6" (7 to 15 mm). Cutout: 2.35" (60 mm). Maximum wall thickness: 0.39" to 1.37" (10 to 35 mm). Orientation: Vertical/Horizontal |
| Included Components | Cable seal; Two (2) seals; Mounting hardware; Installation manual |
| Ingress Protection | IP67 |
