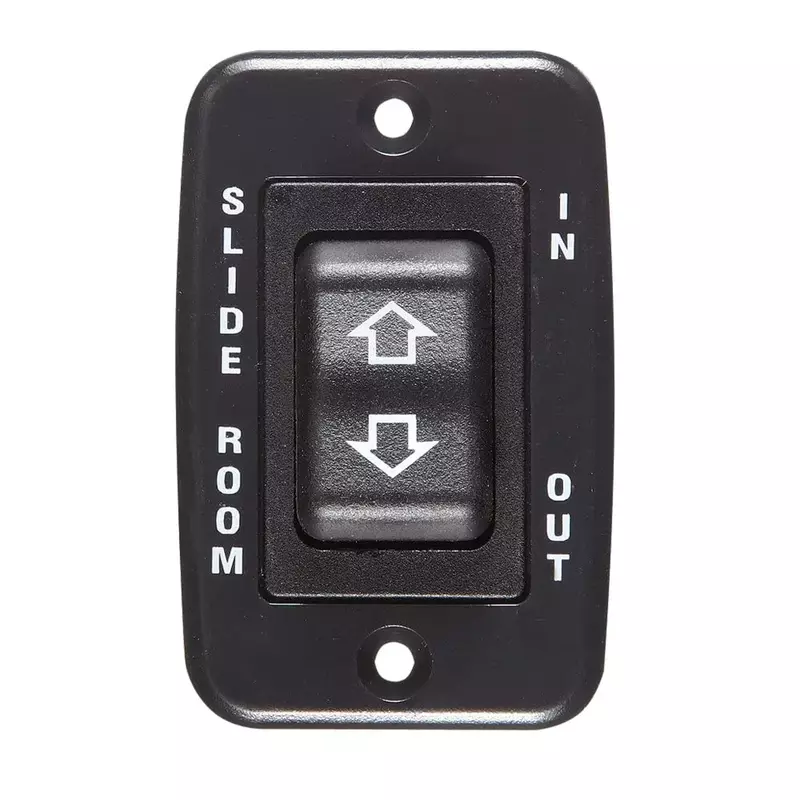

RV Designer S141 Contoured Slide Switch, 20A Continuous/40A Peak, Black
Customize
The RV Designer S141 contoured slide rocker switch is engineered for RV slide-in/slide-out and motor control applications. Designed with a contoured bezel labeled "Slide Room," the S141 provides reliable 20 Amp continuous performance with 40 Amp peak capacity for motor switching and reversing. Constructed with an ABS housing and copper contact material, the switch is panel mountable and features 5 terminals and a clamp-style connector for secure wiring. Cut-out dimensions are approximately 1.85" H x 2.3" W, and the unit measures 4.81 x 2.66 x 1.25 inches. It is sold as a single unit (Unit Count: 1) and includes the rocker switch component. The switch meets CE specification conformance and carries an IP00 rating. Typical operation mode is ON-OFF with 1 position, operates at 12 volts, and is suitable for DC electrical systems. Model S141 is part of the RV Designer collection and is useful for RV electrical controls requiring a compact, durable slide switch.
- 5 Terminals
- Typical Applications: Slide Out, Motor Control
- Cut-Out 1.85” H x 2.3” W
- Includes bezel w/text: “Slide Room”
- 20 Amp Continous. 40 Amp Peak for motor switching / reversing applications.
Specifications:
| Materials & Construction | |
| Color | Black |
| Contact Material | Copper |
| Material | Acrylonitrile Butadiene Styrene |
| Product Details | |
| Actuator Type | Hinge Lever |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Clamp |
| Contact Material | Copper |
| Control Method | Touch |
| Included Components | Rocker Switch |
| International Protection Rating | IP00 |
| Item Type Name | RV Designer Collection S141 Contoured Rocker Switch On/Off |
| Material Type | Acrylonitrile Butadiene Styrene |
| Model | S141 |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Number of Positions | 1 |
| Operation Mode | ON-OFF |
| Specification Met | CE |
| Switch Type | Slide |
| Terminal | Physical |
| Unit Count | 1.0 Count |
| Wattage | 12 watts |
| Sizing & Dimensions | |
| Height | 1.25 inches |
| Item Dimensions | 4.81 x 2.66 x 1.25 inches |
| Length | 4.81 inches |
| Product Dimensions | 4.81 x 2.66 x 1.25 inches |
| Size | Cut-Out 1.85" H x 2.3" W |
| Weight | 1.28 ounces |
| Width | 2.66 inches |
| Technical Specifications | |
| Current Rating | 1 Amps |
| Lower Temperature Rating | 1 Degrees Fahrenheit |
| Operating Voltage | 12 Volts |
| Upper Temperature Rating | 1 Degrees Fahrenheit |
| Wattage | 12 watts |
