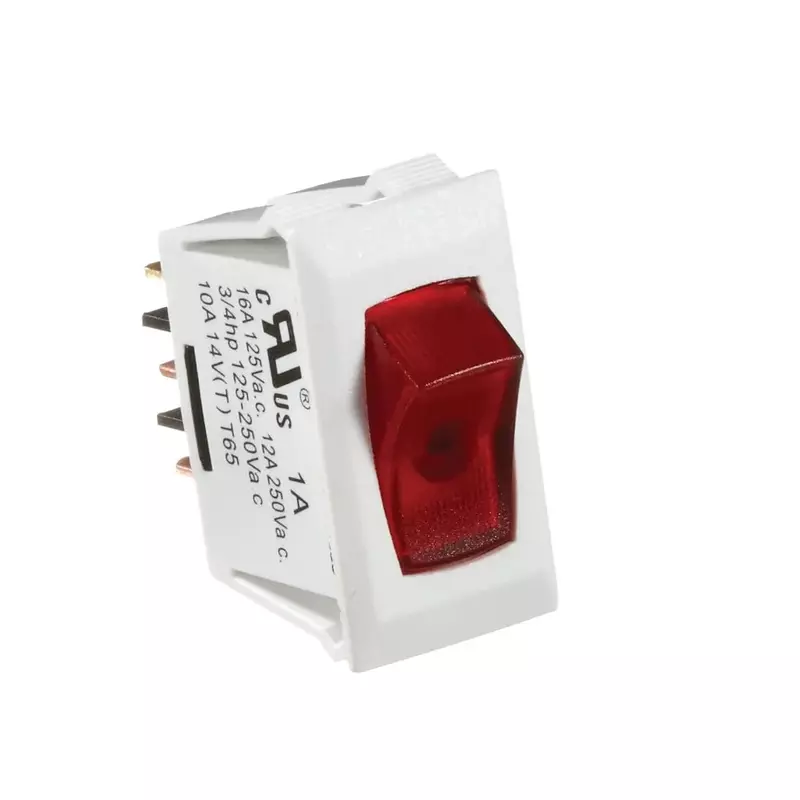

RV Designer S241, Rocker Switch, 10 Amp, Illuminated On/Off, SPST, White w/Red, 12 Volts DC
RV Designer S241 illuminated rocker switch (SPST) - 10A, panel-mount for automotive/RV use; white body with red rocker; ideal for lighting, water pumps and heaters.
$6.62 $6.62
Customize
Available Quantity
28 Product Details
RV Designer S241 illuminated rocker switch (SPST) rated 10 Amps at 14 VDC. Panel-mount design with three terminals and a panel cutout of .550” x 1.125”. Typical applications include lighting, water heater, water pump and other appliance-type control in automotive and RV installations. Constructed with plastic housing and copper/brass contacts. Includes one (1) rocker switch (White w/Red) - model S241. Lifetime commitment warranty.
- 3 Terminals
- Typical Applications: Lighting, Water Heater, Water Pump and Other Appliance Type Control
- Cutout .550” x 1.125”
- 10A, Illuminated On/Off
Specifications:
| Materials & Construction | |
| Color | White / Red |
| Contact Material | Copper, Brass |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Actuator Type | Rocker |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | One |
| Contact Type | Normally Open |
| Control Method | Touch |
| Controller Type | Push Button |
| Included Components | RV Designer, S241, White w/Red Rocker Switch, 10A, Illuminated On/Off - SPST |
| Model | S241 |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Operation Mode | ON-OFF |
| Switch Type | Rocker, SPST |
| Terminal | Spst |
| Warranty Description | Lifetime Comittment |
| Wattage | 140 watts |
| Sizing & Dimensions | |
| Height | 0.75 inches |
| Length | 4.81 inches |
| Product Dimensions | 4.81 x 2.66 x 0.75 inches |
| Product Weight | 0.04 pounds |
| Size | 4.81 x 2.66 x 0.75 inches |
| Weight | 0.64 ounces |
| Width | 2.66 inches |
| Technical Specifications | |
| Current Rating | 10 Amps |
| Operating Voltage | 14 Volts |
| Wattage | 140 watts |
