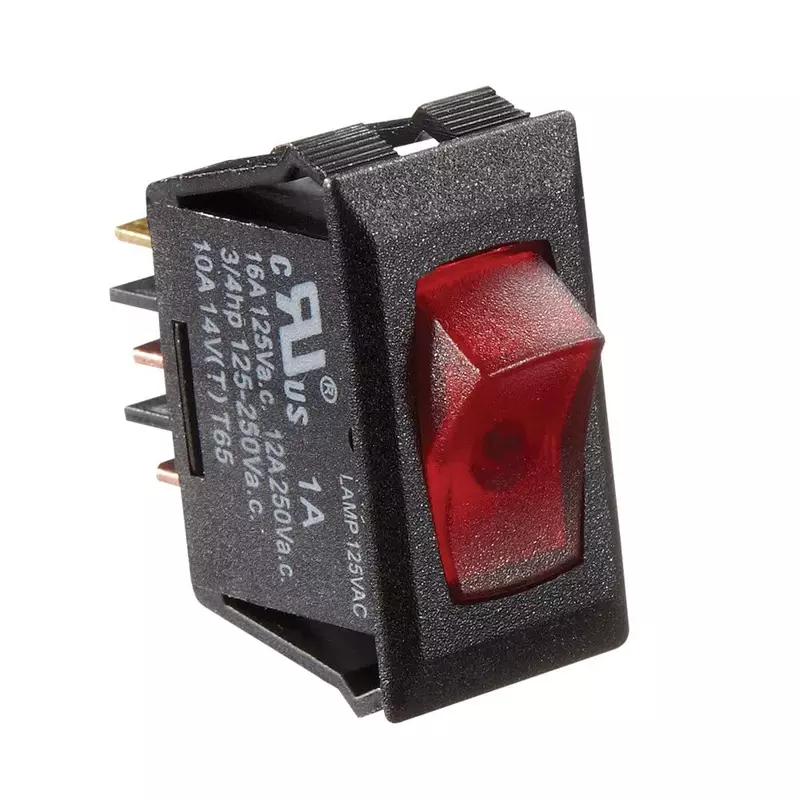

RV Designer S245, Rocker Switch, 125 VAC, Illuminated, On/Off, SPST, Black w/Red, DC Electrical
RV Designer S245 illuminated rocker switch — 125 VAC SPST panel-mount switch with brass contacts, black body and red indicator; ideal for lighting, water pumps and appliance control.
$9.86 $9.86
Customize
Available Quantity
53 Product Details
RV Designer S245 illuminated rocker switch, model S245. 125 VAC rated, single-pole single-throw (SPST) rocker switch with brass contact material and clamp connector. Typical applications include lighting, water heater, water pump and other appliance-type control. Panel-mount design with cutout approximately .550” x 1.125”. Item dimensions are 4.81 x 2.66 x 0.75 inches. Unit is UL specification met and carries IP00 rating. Operation mode OFF-NONE-ON, 2 positions, actuator type: rocker. Current rating 1 Amp, wattage 125 watts, operating voltage 125 Volts. Includes RV Designer Collection S245 Rocker Switch Black W/Red On/ component. Manufacturer listed as RV DESIGNER COLLECTION.
- 3 Terminals
- Typical Applications: Lighting, Water Heater, Water Pump and Other Appliance Type Control
- Cutout .550” x 1.125”
- 125VAC, Illuminated On/Off
Specifications:
| Materials & Construction | |
| Color | Black / Red |
| Contact Material | Brass |
| Material | Brass |
| Product Details | |
| Actuator Type | Rocker |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Clamp |
| Contact Material | Brass |
| Contact Type | Normally Closed |
| Control Method | Touch |
| Current Rating | 1 Amps |
| GTIN | 601320112451 |
| Included Components | RV Designer Collection S245 Rocker Switch Black W/Red On/ |
| International Protection Rating | IP00 |
| Item Type Name | RV Designer Collection S245 Rocker Switch Black W/Red On/ |
| Material Type | Brass |
| Model | S245 |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Number of Positions | 2 |
| Operating Voltage | 125 Volts |
| Operation Mode | OFF-NONE-ON |
| Specification Met | UL |
| Switch Type | Rocker |
| Terminal | Spst |
| Unit Count | 1.0 Count |
| UPC | 601320112451 |
| Wattage | 125 watts |
| Sizing & Dimensions | |
| Height | 0.75 inches |
| Length | 4.81 inches |
| Product Dimensions | 4.81 x 2.66 x 0.75 inches |
| Product Weight | 0.0400 |
| Weight | 0.80 ounces |
| Width | 2.66 inches |
| Technical Specifications | |
| Current Rating | 1 Amps |
| Lower Temperature Rating | 100 Degrees Fahrenheit |
| Operating Voltage | 125 Volts |
| Upper Temperature Rating | 100 Degrees Fahrenheit |
| Wattage | 125 watts |
