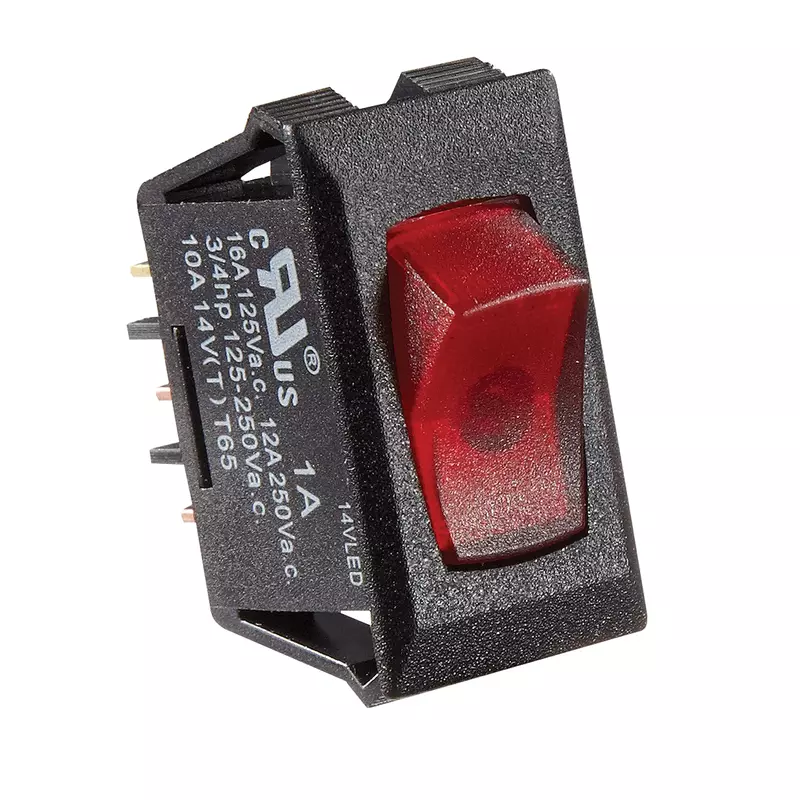

RV Designer S247, Rocker Switch, 10 Amp, Illuminated On / Off, SPST, Black w/ Red, DC Electrical
RV Designer S247 illuminated 10A SPST rocker switch in black with red actuator — ideal for RV and automotive lighting, water pumps and appliance control; fit type: universal.
$9.38 $9.38
Customize
Available Quantity
97 Product Details
RV Designer S247 Rocker Switch — 10 Amp illuminated on/off SPST rocker in black with red actuator. Typical applications include lighting, water heaters, water pumps and other RV or automotive appliance control. Features a cutout size of .550” x 1.125”, three terminals, DIN rail mountable actuator, and an IP54 protection rating. Constructed with Acrylonitrile Butadiene Styrene body and alloy steel contact material. Rated 14 Volts operating voltage, 10 Amp current rating, and supports up to 140 watts. Includes RV Designer Collection S247 Rocker Switch 10A Black W/Red.
- 10A, Illuminated On/Off.Fit Type: Universal Fit
- Cutout .550” x 1.125”
- Typical Applications: Lighting, Water Heater, Water Pump and Other Appliance Type Control
- 3 Terminals
Specifications:
| Materials & Construction | |
| Color | Black / Red |
| Contact Material | Alloy Steel |
| Material | Acrylonitrile Butadiene Styrene |
| Product Details | |
| Included Components | RV Designer Collection S247 Rocker Switch 10A Black W/Red |
| Item Dimensions | 4.02 x 2.4 x 0.71 inches |
| Item Type Name | RV Designer Collection S247 Rocker Switch 10A Black W/Red |
| Model | S247 |
| Switch Type | Rocker |
| Terminal | Spst |
| Sizing & Dimensions | |
| Height | 0.71 inches |
| Length | 4.02 inches |
| Product Dimensions | 4.02 x 2.4 x 0.71 inches |
| Weight | 0.64 ounces |
| Width | 2.4 inches |
| Technical Specifications | |
| Actuator Type | Rocker |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Clamp |
| Contact Type | Normally Closed |
| Control Method | Touch |
| Current Rating | 10 Amps |
| International Protection Rating | IP54 |
| Mounting Type | DIN Rail Mount |
| Number of Positions | 3 |
| Operating Voltage | 14 Volts |
| Operation Mode | Off |
| Specification Met | ANSI C-73 |
| Wattage | 140 watts |
