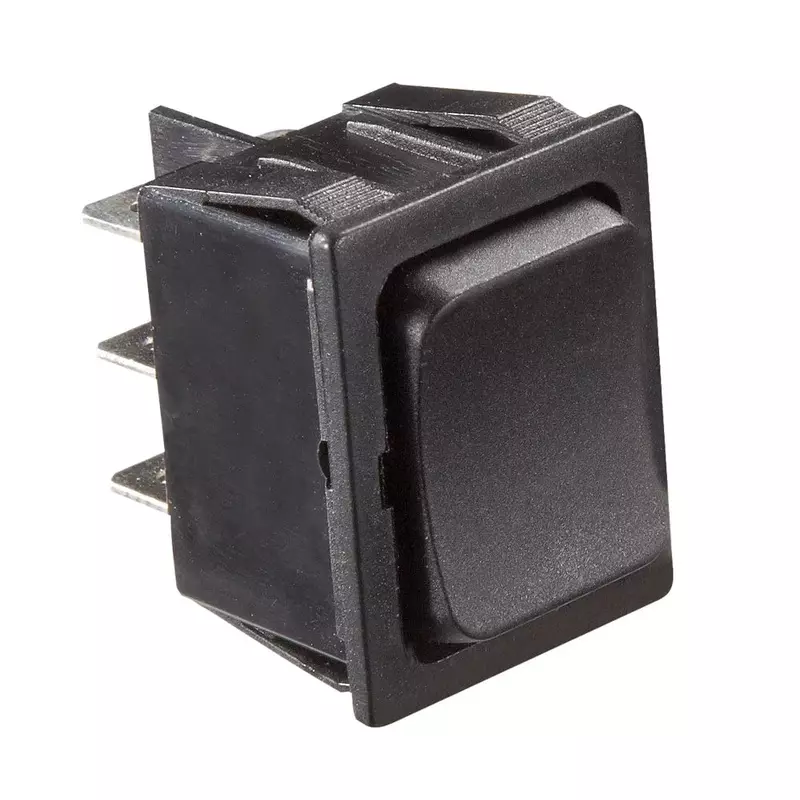

RV Designer S471, Rocker Switch, 5 Amp, Momentary On / Off Momentary On, DPDT, Black, DC Electrical Black 1 Count (Pack of 1)
Customize
RV Designer S471 Rocker Switch (Model S471) is a compact, panel-mount DC rocker switch engineered for automotive and RV replacement applications. Rated at 5 Amps and 14 VDC, this DPDT rocker switch is black with copper contact material and crimp-style connectors. Typical applications include slide-outs, power sofas and generator circuits. The switch features 6 terminals, 2 positions (momentary on/off), IP54 protection rating, and meets UL specifications. Physical item dimensions are 4.81 x 2.66 x 1.25 inches and the item weight is 0.02 pounds. Included component: DC Rocker Switch. Connector Type: Crimp. Contact Type: Normally Closed. Mounting type: Panel Mount. Operation Mode: ON-OFF. Wattage: 70 watts. Connectivity Protocol: X-10. Control Method: Touch.
- 5A, 14 VDC
- Cutout .872” x 1.071”
- Typical Applications: Slide Out, Power Sofas, Generator
- 6 Terminals
Specifications:
| Materials & Construction | |
| Color | Black |
| Contact Material | Copper |
| Material | Copper |
| Product Details | |
| Actuator Type | Rocker |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Crimp |
| Contact Type | Normally Closed |
| Control Method | Touch |
| Current Rating | 5 Amps |
| GTIN | 00601320114714 |
| Included Components | DC Rocker Switch |
| International Protection Rating | IP54 |
| Item Type Name | RV Designer Collection S471 Rocker Switch 5A Mom On/Off Mom |
| Model | S471 |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operating Voltage | 14 Volts |
| Operation Mode | ON-OFF |
| Specification Met | UL |
| Switch Type | Rocker |
| Terminal | Dpdt |
| UPC | 601320114714 |
| Wattage | 70 watts |
| Sizing & Dimensions | |
| Height | 1.25 inches |
| Length | 4.81 inches |
| Product Dimensions | 4.81 x 2.66 x 1.25 inches |
| Product Weight | 0.02 pounds |
| Weight | 0.32 ounces |
| Width | 2.66 inches |
| Technical Specifications | |
| Current Rating | 5 Amps |
| Operating Voltage | 14 Volts |
| Wattage | 70 watts |
