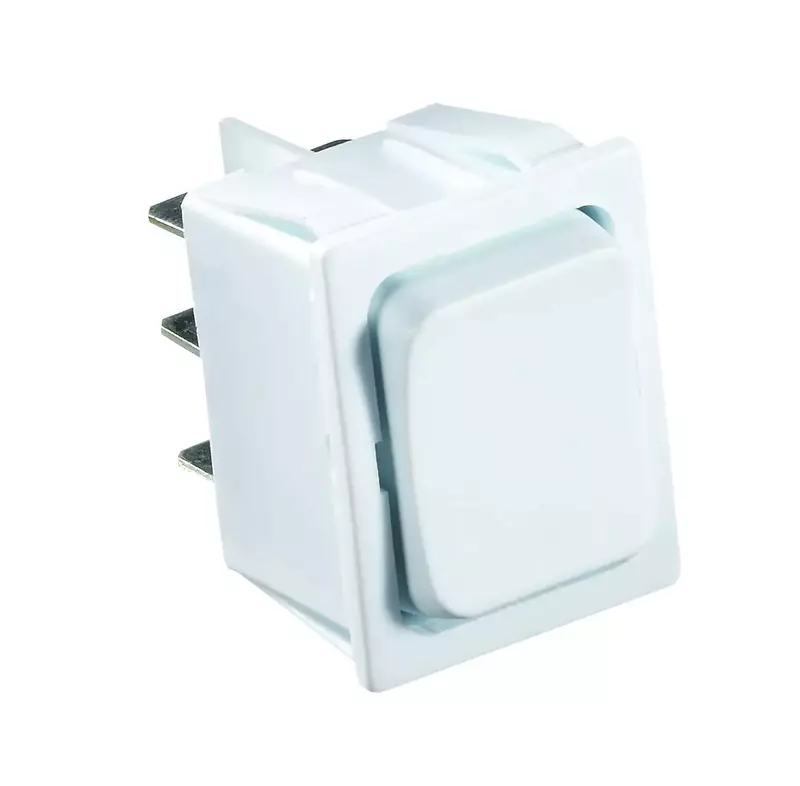

RV DESIGNER S475 Rocker Switch 5 Amp DPDT White 12V DC
RV Designer S475 5A white rocker switch (DPDT), panel-mount, 12V DC, 6 terminals; typical applications: slide-outs, power sofas, generators; cutout .872” x 1.071”.
$12.38 $12.38
Customize
Available Quantity
23 Product Details
RV DESIGNER S475 Rocker Switch — 5 Amp DPDT rocker switch designed for DC electrical applications in RVs and other mobile or industrial uses. Typical applications include slide-outs, power sofas, and generators. The S475 is a panel-mount rocker with 6 terminals and a cutout of approximately .872” x 1.071”. Rated 5A at 12 VDC, the switch features a momentary ON/OFF momentary ON operation mode (ON-OFF-ON), clamp-style connector, and a normally closed contact type. Constructed with plastic housing and alloy steel contact material. Item dimensions: 1.25 x 2.66 x 4.81 inches. Item weight: 0.05 pounds (0.8 ounces). Model: S475. Includes: DC Rocker Switch 5 Amp. Certification: CE. IP rating: IP00.
- 5A, 14 VDC
- Cutout .872” x 1.071”
- Typical Applications: Slide Out, Power Sofas, Generator
- 6 Terminals
Specifications:
| Materials & Construction | |
| Color | White |
| Contact Material | Alloy Steel |
| Material | Plastic |
| Material Type | Plastic |
| Product Details | |
| Actuator Type | Rocker |
| Circuit Type | 1-way |
| Contact Material | Alloy Steel |
| GTIN | 601320114752 |
| Included Components | DC Rocker Switch 5 Amp, |
| International Protection Rating | IP00 |
| Item Type Name | RV Designer Collection S475 Rocker Switch 5A Mom On/Off Mom |
| Model | S475 |
| Mounting Type | Panel Mount |
| Specification Met | CE |
| Switch Type | Rocker |
| Terminal | Dpdt |
| UPC | 601320114752 |
| Sizing & Dimensions | |
| Height | 1.25 inches |
| Length | 4.81 inches |
| Product Dimensions | 1.25 x 2.66 x 4.81 inches |
| Product Weight | 0.05 pounds |
| Size | 1.25 x 2.66 x 4.81 inches |
| Weight | 0.8 ounces |
| Width | 2.66 inches |
| Technical Specifications | |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Clamp |
| Contact Type | Normally Closed |
| Control Method | Touch |
| Current Rating | 5 Amps |
| Insulation Resistance | 100 Megaohms |
| Lower Temperature Rating | 1 Degrees Fahrenheit |
| Number of Positions | 1 |
| Operating Voltage | 12 Volts |
| Operation Mode | ON-OFF-ON |
| Upper Temperature Rating | 1 Degrees Fahrenheit |
