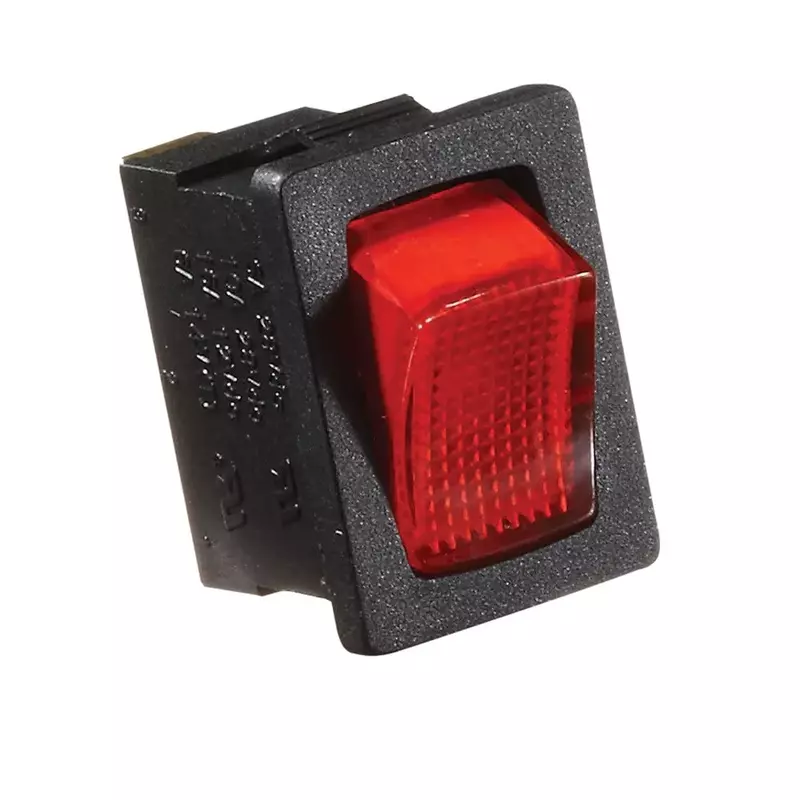

RV Designer S481, Rocker Switch, Illuminated, 20 Amp, On / Off, SPST, Black w/ Red, DC Electrical 1 Count (Pack of 1) Rocker Switch
RV Designer S481 illuminated rocker switch — 20A, 12V DC SPST; black with red rocker. 3 terminals, surface mount. Typical uses: lighting, water heater, water pump; cutout .519” x .756”–.779”.
$6.22 $6.22
Customize
Available Quantity
44 Product Details
RV Designer S481 illuminated rocker switch designed for DC electrical applications. Rated 20A for common 12V systems, SPST (single-pole single-throw) on/off operation with 3 terminals for reliable connections. Constructed with brass contact material and engineered for surface-mount installation. Typical applications include RV lighting, water heaters, water pumps and other appliance-type controls. Cutout dimensions: .519” x .756” to .779”. Item dimensions: 4.81 x 2.66 x 0.75 inches. Item weight approximately 0.03 pounds. Meets UL specification; International Protection Rating: IP00. Connector type: crimp. Operation mode: ON-OFF. Includes one RV Designer S481 rocker switch.
- 20A, 14 VDC
- Cutout .519” x .756” to .779”
- Typical Applications: Lighting, Water Heater, Water Pump and Other Appliance Type Control
- 3 Terminals
Specifications:
| Materials & Construction | |
| Color | Black |
| Contact Material | Brass |
| Material | Brass |
| Product Details | |
| Actuator Type | Rocker |
| Connector Type | Crimp |
| Included Components | RV Designer Collection S481 Rocker Switch 20A Black W/Red |
| Item Type Name | RV Designer Collection S481 Rocker Switch 20A Black W/Red |
| Model | S481 |
| Mounting Type | Surface Mount |
| Number of Items | 1 |
| Switch Type | Rocker |
| Terminal | Spst |
| Unit Count | 1.0 Count |
| Sizing & Dimensions | |
| Height | 0.75 inches |
| Length | 4.81 inches |
| Product Dimensions | 4.81 x 2.66 x 0.75 inches |
| Product Weight | 0.0300 |
| Size | 4.81 x 2.66 x 0.75 inches |
| Weight | 0.48 ounces |
| Width | 2.66 inches |
| Technical Specifications | |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Crimp |
| Contact Type | Normally Closed |
| Control Method | Touch |
| Current Rating | 2 Amps |
| International Protection Rating | IP00 |
| Number of Positions | 2 |
| Operating Voltage | 12 Volts (DC) |
| Specification Met | UL |
| Warranty | Manufacturer |
| Wattage | 28 watts |
