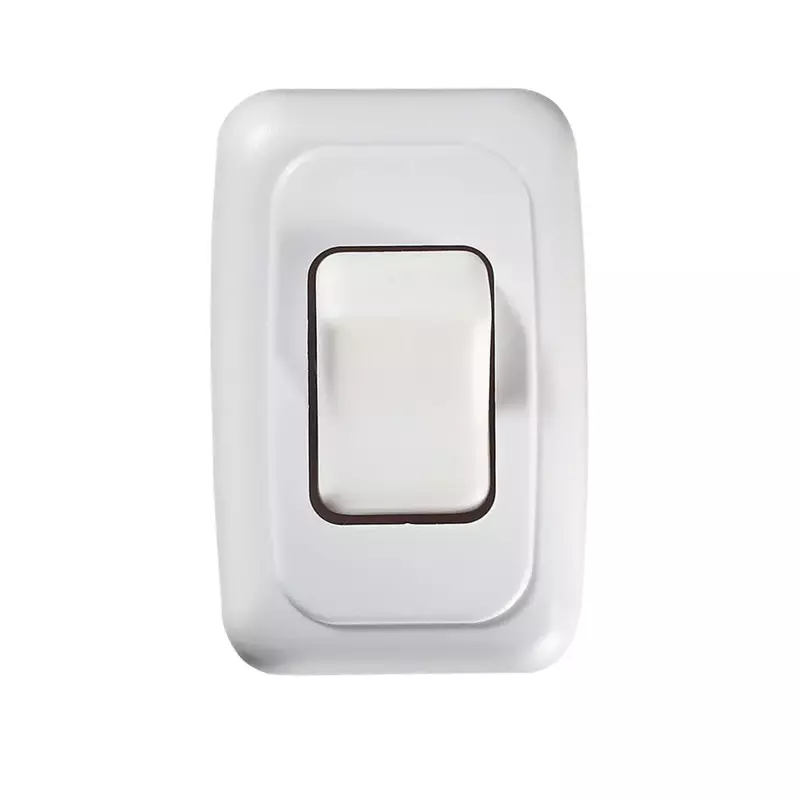

RV Designer S531, Contoured Wall Switch, Includes Base and Bezel, On / Off, Single, White, DC Electrical
RV Designer S531 contoured single wall switch in white. Includes base and bezel; panel-mount design for RV lighting control. 12V DC, 1A rating, ABS body; contemporary contour styling.
$18.31 $18.31
Customize
Available Quantity
37 Product Details
RV Designer S531 Contoured Wall Switch — single on/off switch in white, designed for panel-mount applications and RV lighting control. Includes switch, base and bezel. Constructed from Acrylonitrile Butadiene Styrene (ABS) with copper contact material. Rated for 12 Volts DC and 1 Amp current, typical applications include lighting control, entry steps, and appliances. Item dimensions are 4.81 x 2.66 x 0.75 inches. Features include touch control method, X-10 connectivity protocol, SPST terminal configuration and CE specification met. Model S531, contemporary contour design.
- Typical Applications: Lighting Control, Entry Steps, Appliances
- 2 Terminals per switch
- Fit type: Universal
- Inc. Switch, Base & Bezel
- Cut-Out 1-5/8"H x 1-1/4"W
Specifications:
| Materials & Construction | |
| Color | White |
| Contact Material | Copper |
| Material | Acrylonitrile Butadiene Styrene |
| Outer Material | Acrylonitrile Butadiene Styrene |
| Product Details | |
| Connectivity Protocol | X-10 |
| Contact Material | Copper |
| Contact Type | Normally Closed |
| Control Method | Touch |
| Included Components | Contemporary Contour design. Includes; Switch, base and bezel |
| Included Wattage | 192 watts |
| International Protection Rating | IP00 |
| Item Dimensions | 4.81 x 2.66 x 0.75 inches |
| Item Type Name | RV Designer Collection S531 Contoured Wall Switch Single On White |
| Model | S531 |
| Number of Items | 1 |
| Operation Mode | ON-OFF |
| Specification Met | CE |
| Switch Type | Bipolar Transistor |
| Terminal | Spst |
| Unit Count | 1.0 Count |
| Sizing & Dimensions | |
| Height | 0.75 inches |
| Length | 4.81 inches |
| Product Dimensions | 4.81 x 2.66 x 0.75 inches |
| Product Weight | 0.0600 |
| Size | 4.81 x 2.66 x 0.75 inches |
| Weight | 0.96 ounces |
| Width | 2.66 inches |
| Technical Specifications | |
| Circuit Type | 1-way |
| Current Rating | 1 Amps |
| Lower Temperature Rating | 1 Degrees Fahrenheit |
| Mounting Type | Panel Mount |
| Number of Positions | 1 |
| Operating Voltage | 12 Volts |
| Upper Temperature Rating | 1 Degrees Fahrenheit |
| Wattage | 192 watts |
