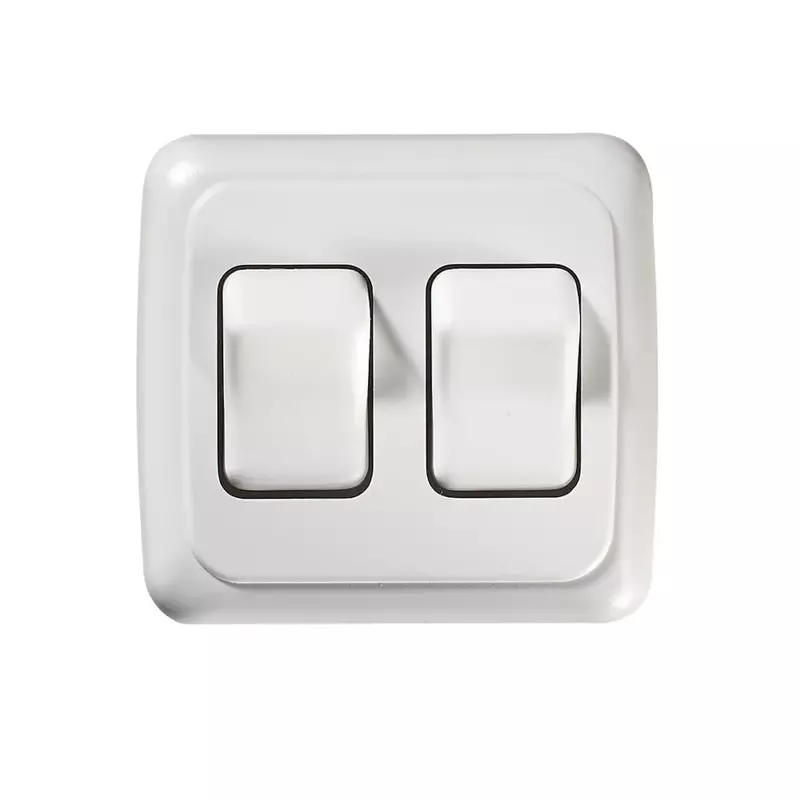

RV Designer S533 Contoured Double Wall Switch, White
RV Designer S533 contoured double wall switch includes base and bezel. White ABS construction, SPST, 12V DC, 1A, IP54 rated. Ideal for RV electrical applications.
$18.48 $18.48
Customize
Available Quantity
30 Product Details
RV Designer S533 Contoured Double Wall Switch (includes base and bezel) designed for 12V DC applications. The contoured contemporary design in white is constructed of Acrylonitrile Butadiene Styrene (ABS) with Alloy Steel contact material. This double SPST (single pole single throw) switch is rated for 1 Amp and features IP54 protection and ETL specification compliance. It mounts to the wall and includes two terminals per switch. Item dimensions are 5.06 x 3 x 1.88 inches, unit count 1, and included components are the switch, base and bezel. Ideal for RV and similar DC electrical uses.
- 2 Terminals per switch
- Contemporary Contour design
- Package Dimensions: 12.7 L x 5.08 H x 7.62 W (centimeters)
- Country of Origin : China
Specifications:
| Materials & Construction | |
| Color | White |
| Contact Material | Alloy Steel |
| Material | Acrylonitrile Butadiene Styrene |
| Material Type | Acrylonitrile Butadiene Styrene |
| Product Details | |
| GTIN | 601320115339 |
| Included Components | Switch, base and bezel |
| Item Type Name | RV Designer Collection S533 Contoured Wall Switch Double On White |
| Model | S533 |
| Number of Items | 1 |
| Unit Count | 1.0 Count |
| UPC | 601320115339 |
| Sizing & Dimensions | |
| Height | 1.88 inches |
| Item Dimensions | 5.06 x 3 x 1.88 inches |
| Length | 5.06 inches |
| Product Dimensions | 5.06 x 3 x 1.88 inches |
| Product Weight | 0.1100 |
| Weight | 1.76 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Actuator Type | Hinge Lever |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Clamp |
| Contact Type | Normally Closed |
| Control Method | Touch |
| Current Rating | 1 Amps |
| International Protection Rating | IP54 |
| Lower Temperature Rating | 1 Degrees Fahrenheit |
| Mounting Type | Wall Mount |
| Number of Positions | 2 |
| Operating Voltage | 12 Volts |
| Operation Mode | ON-OFF |
| Specification Met | ETL |
| Switch Type | SPST |
| Terminal | Spst |
| Upper Temperature Rating | 1 Degrees Fahrenheit |
| Wattage | 12 watts |
