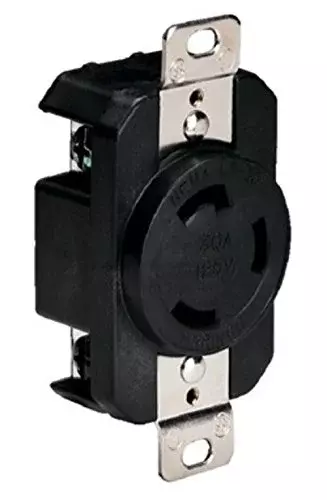

Marinco Power Products 305CRRB.OERM Receptacle, Locking, 30 Amp, 125V
Customize
ProductDatabase Title: 3 WIRE 30A/125V LOCKING RECEPTACLE (Mfg Part: 305CRRB.OEM). Marinco Power Products locking receptacle features clamp-type terminals to provide positive wire holding and rivetless, one-piece contacts to eliminate joint resistance. Constructed of glass-filled nylon for chemical resistance and continuous use up to 130°C. RainforestProductData lists model 305CRRB.OERM with Material: Nylon, Included Components: 50 receptacles, Unit Count: 1 Count, and Item Weight 0.2 Pounds. Specifications indicate connector type as Plug In, Specification Met: NEMA, Total Power Outlets: 1, Amperage: 20 Amps, Voltage: 125 Volts, 250 Volts. Product dimensions from ProductDatabase: Height 1.1000, Width 1.5000, Length 2.9000 (inches) and ProductWeight 0.2000 pounds. Intended for robust, locking power outlet use in industrial and marine environments.
- Clamp-type terminals provide wire holding. Rivet less, one-piece contacts eliminate joint resistance
- 130 degrees Celsius continuous use
- Glass-filled nylon- Tough and resistant to a wide range of chemicals
Specifications:
| Materials & Construction | |
| Material | Nylon |
| Outer Material | Nylon |
| Product Details | |
| Amperage | 20 Amps |
| Compatible Devices | All |
| Connector Type | Plug In |
| Global Trade Identification Number | 00093344306402 |
| GTIN | 093344306402 |
| Included Components | 50 receptacles |
| Material | Nylon |
| Material Type | Nylon |
| Model | 305CRRB.OERM |
| Model Number | 305CRRB.OERM |
| Specification Met | NEMA |
| Total Power Outlets | 1 |
| Unit Count | 1 Count |
| UPC | 093344306402 |
| Voltage | 125 Volts, 250 Volts |
| Sizing & Dimensions | |
| Height | 1.1 inches |
| Length | 2.9 inches |
| Product Dimensions | 2.9 x 1.5 x 1.1 inches |
| Product Weight | 0.2000 |
| Weight | 3.2 ounces |
| Width | 1.5 inches |
| Technical Specifications | |
| Specification Met | NEMA |
