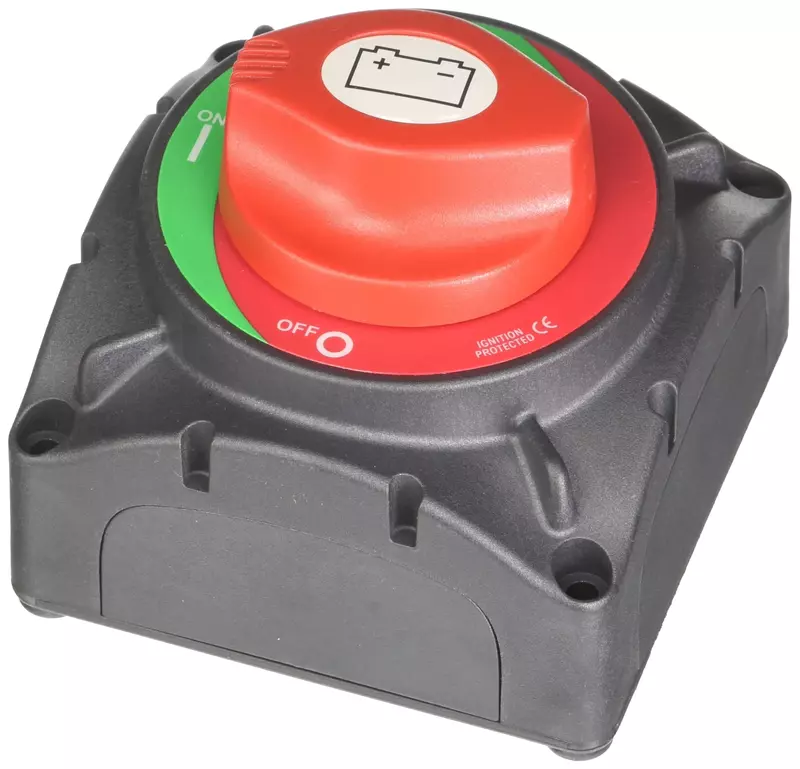

Marinco ParkPower 720RV Contour Heavy-Duty Master Switch, 600A Continuous
Customize
The Marinco ParkPower 720RV Contour Heavy-Duty Master Switch is engineered for high-current battery isolation and control in marine and RV applications. Designed to handle heavy loads, the 720RV offers a continuous current rating suitable for demanding systems and is built with tin-plated copper studs and nuts for reliable conductivity and corrosion resistance. The contour housing supports recessed or surface mounting and includes removable side plates plus a rear cover to insulate rear terminals against short circuits. With IP54 protection and ignition protection, the switch provides durable performance in harsh environments. Compact dimensions and a single-package quantity make installation straightforward. Key specifications include 600 Amps current rating, 48 Volts operating voltage, screw terminal connectors, SPDT terminal configuration, and a two-position on/off control.
- Country of Origin: China
- Product type: Electronic_Switch
- Package quantity: 1
- Package dimensions: 18.288 cms L x 14.986 cms W x 9.906 cms H
Specifications:
| Materials & Construction | |
| Color | Red |
| Contact Material | Copper |
| Material | Copper |
| Material Type | Copper |
| Product Details | |
| Circuit Type | 2-way |
| Connectivity Protocol | X-10 |
| Connector Type | Screw Terminals |
| Contact Type | Normally Open |
| Control Method | Touch |
| EU Spare Part Availability Duration | 5 Years |
| GTIN | 00093344311680 |
| International Protection Rating | IP54 |
| Model | 720RV |
| Number of Positions | 2 |
| Operation Mode | ON-OFF |
| Specification Met | Electronic |
| Switch Type | Master Switch |
| Terminal | Spdt |
| UPC | 093344311680 |
| Wattage | 28800 watts |
| Sizing & Dimensions | |
| Height | 2.40 inches |
| Item dimensions L x W x H | 1.09 x 0.78 x 0.62 inches |
| Length | 6.68 inches |
| Weight | 1.50 pounds |
| Width | 5.50 inches |
| Technical Specifications | |
| Current Rating | 600 Amps |
| Mounting Type | Surface Mount |
| Number of Positions | 2 |
| Operating Voltage | 48 Volts |
| Wattage | 28800 watts |
