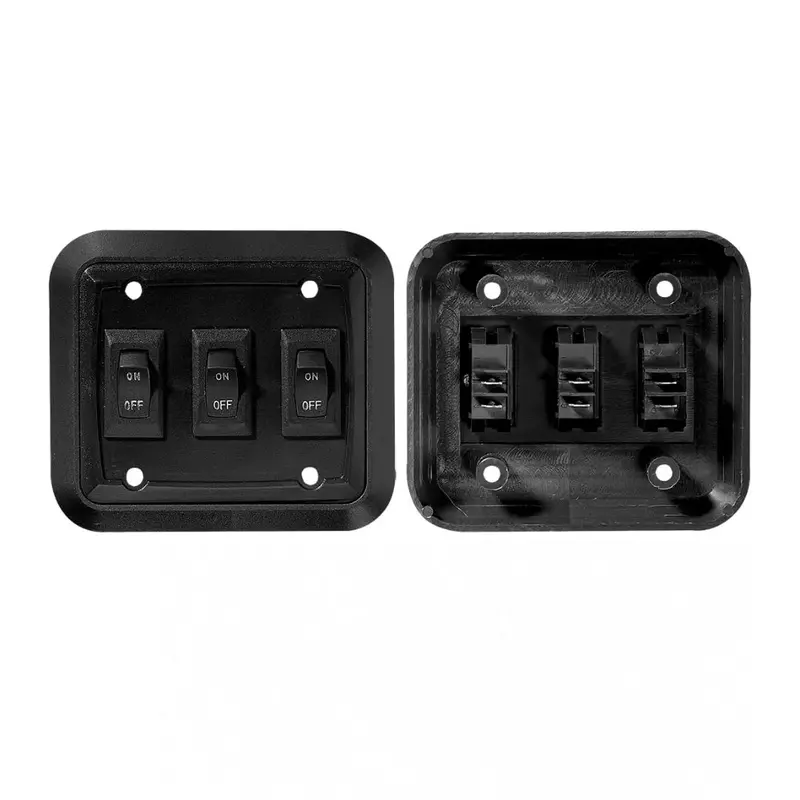

RV Designer S660 Wall Plate Switch Triple Black 3.53 x 4 On/Off SPST
Customize
RV Designer (RVD) started in 1993, making custom drapes for RV's. Since then we've learned to appreciate the RV Lifestyle and the RV community. Our range of RV Replacement Hardware makes RV'ing easier. The RV Designer S660 Wall Plate Switch is a triple, black wall plate switch designed for RV replacement and light-duty electrical control. It features three SPST positions with contour on/off actuators, raised bezel and included plate, and mechanical push-button actuators. Typical applications include lighting control, entry steps, and appliances. Construction includes copper, brass, and stainless steel contact materials. UL specification met. Item dimensions: 3.53 x 4 inches. Operating voltage: 12 Volts DC. Current rating: 0.01 Amps. Mounting: wall mount. Model S660.
- Includes Raised Bezel, Plate, and Switch
- Countour On / Off
- Typical Applications: Lighting Control, Entry Steps, Appliances
- 2 Terminals per switch
Specifications:
| Materials & Construction | |
| Contact Material | Copper, Brass, Stainless Steel |
| Product Details | |
| GTIN | 601320136600 |
| Included Components | Wall Plate Switch |
| International Protection Rating | IP00 |
| Item Type Name | Wall Plate Switch |
| Model | S660 |
| Number of Items | 1 |
| Specification Met | UL |
| Unit Count | 1.0 Count |
| Warranty Description | Manufacturer |
| Sizing & Dimensions | |
| Height | 1.0000 inches |
| Length | 4.0000 inches |
| Product Dimensions | 3.53 x 4 inches |
| Product Weight | 0.4000 pounds |
| Size | 3.53 x 4 inches |
| Weight | 6.4 ounces |
| Width | 3.5300 inches |
| Technical Specifications | |
| Actuator Type | Push Button |
| Circuit Type | 3-way |
| Connector Type | Crimp |
| Contact Type | Normally Open |
| Control Method | Touch |
| Current Rating | 0.01 Amps |
| Mounting Type | Wall Mount |
| Number of Positions | 3 |
| Operating Voltage | 12 Volts (DC) |
| Operation Mode | OFF-NONE-ON |
| Switch Type | Mechanical Switch |
| Terminal | Spst |
