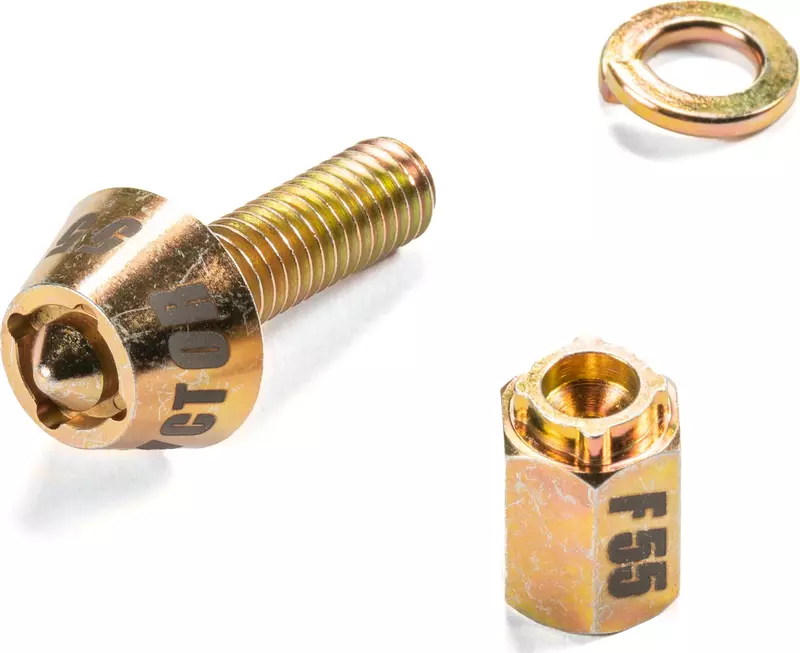

Factor 55 Winch Lock Bolt for Security and Theft Prevention
Customize
Protects winches from theft. Substitute one of your winch mounting bolts with the “Winch Lock” bolt. The winch lock bolt is a custom 3/8-16 precision security bolt made from 1045 carbon alloy steel heat treated to Grade 5 yield strength. The key patterned head bolt is proprietary and the matching key is not available at your local retail hardware store. The winch lock bolt cannot be removed with ordinary screw drivers, pliers, or commonly sold security bits. Features include special coded security key allowing both end and side access, 60° head taper to prevent removal with pliers, proprietary security key pattern, hidden spring lock washer pocket for gapless installation, heat-treated 1045 carbon steel construction, and zinc chromate corrosion protection. Fits winches using standard 3/8-16 mounting hardware; shank length approximately 1.25". Manufacturer: FACTOR 55. Part Number / Model: 00001.
- Special coded security key allows for both end, and side access
- 60 degree head taper to prevent removal with pliers
- Proprietary security key pattern; Hidden spring lock washer pocket ensures gapless installation
- Made from heat treated 1045 carbon steel, zinc chromate corrosion protection
- Fits all winches with standard 3/8 -16 mounting hardware- shank length 1.25"
Specifications:
| Materials & Construction | |
| Construction Details | 1045 carbon alloy steel heat treated to Grade 5 yield strength; zinc chromate corrosion protection |
| Product Details | |
| Is Discontinued By Manufacturer | No |
| Sizing & Dimensions | |
| Height | 1.5 inches |
| Length | 7.25 inches |
| Product Dimensions | 3.5 x 1.5 x 1.5 inches |
| Product Weight | 0.2500 |
| Weight | 4 ounces |
| Width | 3.5 inches |
| Technical Specifications | |
| Head Taper Angle | 60 degree |
| Proprietary Key Pattern | Yes |
