ARP 234-4317 Stud Kit, Black

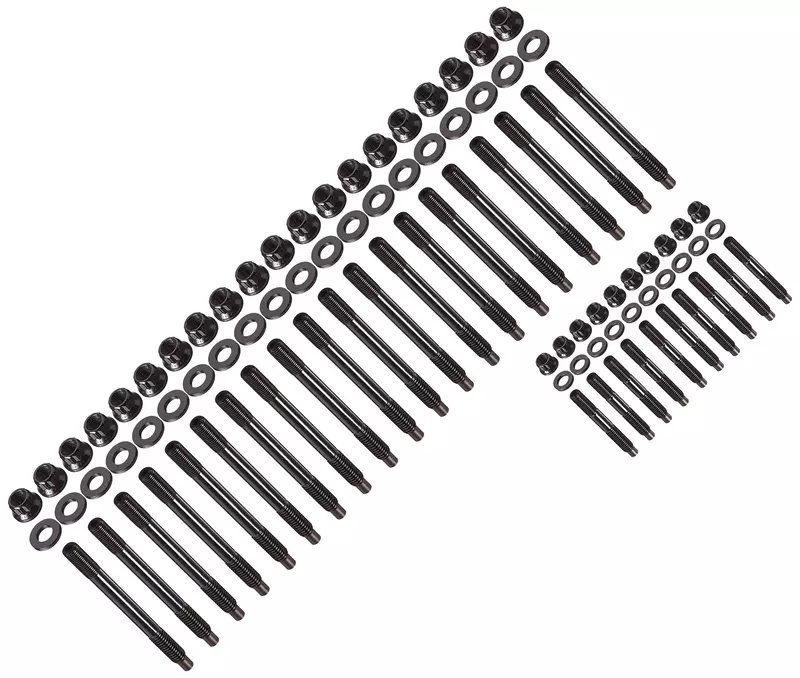

ARP 234-4317 cylinder head stud kit for GM LS-series engines — stainless steel studs with black painted/oxide finish, 12-point nuts, 12 pieces. Vehicle-specific fit; durable engine fastener kit.
$492.37 $492.37
Customize
Available Quantity
56 Product Details
ARP 234-4317 Cylinder Head Stud Kit — This kit is designed for GM LS-series engines and includes twelve stainless steel studs with a black painted/oxide finish and 12-point nuts. Studs are chromoly/stainless construction, fully threaded, and rated with professional grade characteristics (Grade 2, Class 3A/3B thread class). Item dimensions are approximately 4 x 3 x 9 inches and the item weight is approximately 2.45 kilograms (about 5.40 pounds). Package weight listed at 5.2 pounds. Included components: Head Stud & Bolt Kits. Warranty: Manufacturer Warranty. Part/Model: 2344317 / 234-4317. UPC/GTIN: 672036031879.
- Package Weight: 5.2 pounds
- Fit type: Vehicle Specific
- Part number: 2344317
- Socket Size(s) 3/8 12pt, 9/16 12pt, 1/8 Allen, 3/16 Allen
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Stainless Steel |
| Outer Material | Stainless Steel |
| Product Details | |
| Color | Black |
| Compatible Groove Diameter | 0.4 Inches |
| Drive System | Rear-Wheel Drive |
| Exterior Finish | Painted |
| Fastener Size | 0.375 inches |
| Fastener Type | Stud |
| Finish Types | Painted |
| Grade Rating | Pro |
| Head Style | 12-point |
| Head Type | 12-point |
| Included Components | Head Stud & Bolt Kits |
| Item Diameter | 0.36 Inches |
| Item Hardness | Grade 2 |
| Item Type Name | Head Stud & Bolt Kits |
| Manufacturer Grade | Grade 2 |
| Material | Stainless Steel |
| Material Type | Stainless Steel |
| Number of Pieces | 12 |
| Part Interchange Info | 234-4317 |
| Screw Head Style | 12-point |
| Size Name | 3/8-1.5, 9/16-1.5 |
| Thread Class | Class 3A or Class 3B |
| Thread Coverage | Fully Threaded |
| Thread Size | 0.375 inches |
| Thread Style | Right Hand |
| Thread Type | Unf |
| Unit Count | 1.0 Count |
| Warranty Description | Manufacturer Warranty |
| Sizing & Dimensions | |
| Height | 2.26 inches |
| Length | 9.33 inches |
| Product Dimensions | 4 x 3 x 9 inches |
| Product Weight | 5.5000 |
| Size | 3/8-1.5, 9/16-1.5 |
| Weight | 5.50 pounds |
| Width | 4.16 inches |
| Technical Specifications | |
| Grade Rating | Pro |
| Thread Class | Class 3A or Class 3B |
| Warranty | Manufacturer Warranty |
