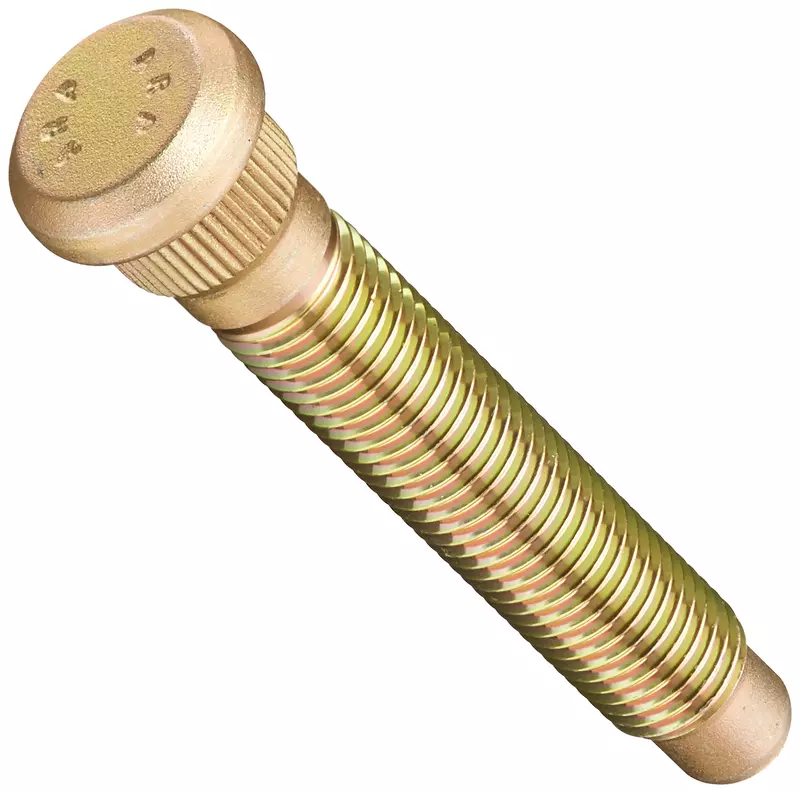

ARP Wheel Stud, 12 mm x 1.50 Thread, 3.000 in Long, 0.565 in Knurl, Chromoly, Cadmium, Mitsubishi Evo VIII, Set of 5
ARP performance wheel stud kit — 12 mm x 1.50 thread, 3.00 in length, chromoly alloy steel with painted/cadmium finish. Set of 5 for Mitsubishi Evo VIII. Performance-grade studs with high shear strength; item weight ~0.5 lb; package weight 0.8 lb.
$55.92 $55.92
Customize
Available Quantity
28 Product Details
The ARP Wheel Stud kit (Part 100-7717) contains five high-strength chromoly alloy steel studs engineered for performance applications such as the Mitsubishi Evo VIII. Each stud features a 12 mm x 1.50 metric thread, 3.000 in length, 0.565 in knurl, painted/cadmium exterior finish and glossy appearance. Performance-rated with a maximum shear strength of 114000 psi and hardness Rockwell B60-B64. Sold as a set of 5, includes wheel studs and backed by manufacturer warranty. Item dimensions: 5 x 1 x 7 inches. Package weight: 0.8 pounds.
- Country of Origin : United States
- Package Weight: 0.8 pounds
- Package Dimensions: 1.27 H x 18.034 L x 11.43 W (centimetres)
- Wheel Stud Hole Size - Cast Iron/Steel Hub - 0.549 - 0.559 inch. Cast Iron/Steel Hub Drill Bit Size (actual dim.)- 14mm (0.551 inch)
Specifications:
| Materials & Construction | |
| Color | Gold |
| Exterior Finish | Painted |
| Finish Types | Glossy |
| Material | Alloy Steel |
| Material Type | Alloy Steel |
| Metal Type | Alloy Steel |
| Product Details | |
| Fastener Size | 12mm x 1.50 |
| Fastener Type | Stud Bolt |
| GTIN | 672036033668 |
| Head Style | Flat |
| Head Type | Hex |
| Model | 100-7717 |
| Part Interchange Info | 100-7717 |
| Screw Head Style | Flat |
| Set Name | 5 |
| Thread Class | 3A |
| Thread Size | 12 mm x 1.50 |
| Thread Style | Right Hand, Metric, Full, Standard |
| Thread Type | Metric |
| UPC | 672036033668 |
| Sizing & Dimensions | |
| Height | 0.75 inches |
| Item Diameter | 0.472 inches |
| Item Dimensions | 5 x 1 x 7 inches |
| Length | 7 inches |
| Product Dimensions | 5 x 1 x 7 inches |
| Size | Stock |
| Weight | 0.83 pounds |
| Width | 5 inches |
| Technical Specifications | |
| Grade Rating | Performance |
| Included Components | Wheel Studs |
| Item Hardness | Rockwell B60-B64 |
| Manufacturer Grade | premium |
| Maximum Shear Strength | 114000 psi |
| Warranty | Manufacturer warranty |
