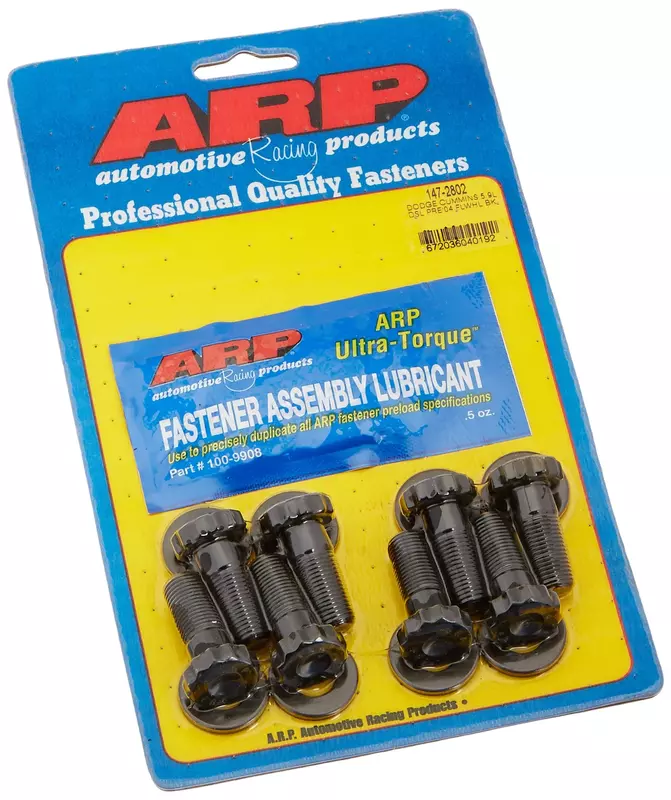

ARP 1472802 Flywheel Bolt Kit for Dodge Cummins
Customize
ARP 147-2802 Flywheel Bolt Kit for pre-2004 Dodge Cummins combines premium 8740 chromoly steel construction with a black painted (black oxide/painted) finish for high-strength, corrosion-resistant fastening. This set includes 8 fully threaded bolts (1/2 inch / 12 mm, 1.25 thread pitch) with a 12-point head and square/special head styles specified for flywheel installation. The bolts are Grade 10.9 hardness offering very high shear strength suitable for rear-wheel or four-wheel drive applications. Made in the USA and sold as a complete flywheel bolt kit for Dodge Cummins 5.9L diesel (pre-2004). Item dimensions are listed as 6 x 1 x 15 inches. Package dimensions reported: 24.4 H x 2.4 L x 14.6 W centimeters (approx. 9.61 x 0.94 x 5.75 inches). Manufacturer warranty applies. GTIN/UPC: 672036040192.
- Part number: 1472802
- Flywheel Bolt Kit
- Made in USA
- Package Dimensions: 24.4 H x 2.4 L x 14.6 W (centimeters)
Specifications:
| Compatibility & Application | |
| Drive System | Rear-Wheel Drive or Four-Wheel Drive |
| Item Type Name | ARP (147-2802) pre 04 Dodge Cummins 5.9L DSL Flywheel Bolt Kit |
| Part Interchange Info | 147-2802 |
| Materials & Construction | |
| Color | Black |
| Exterior Finish | Painted |
| Finish Types | Painted |
| Material | 8740 chromoly steel |
| Material Type | 8740 chromoly steel |
| Metal Type | 8740 chromoly steel or 121000 series steel |
| Product Details | |
| Fastener Size | 1/2 inch |
| Fastener Type | U-Bolt |
| Head Style | Square |
| Included Components | ARP (147-2802) pre 04 Dodge Cummins 5.9L DSL Flywh |
| Number of Pieces | 8 |
| Part Interchange Info | 147-2802 |
| Screw Head Style | Square |
| Screw Point Style | 12 Point |
| Set Name | Flywheel Bolt Kit |
| Set Screw Thread Type | Metric |
| Size Name | Stock |
| Thread Class | 2A |
| Thread Coverage | Fully Threaded |
| Thread Style | Right Hand |
| Thread Type | Metric |
| Sizing & Dimensions | |
| Compatible Groove Diameter | 13.5 Inches |
| Fastener Size | 1/2 inch |
| Height | 0.13 inches |
| Length | 8.76 inches |
| Product Dimensions | 6 x 1 x 15 inches |
| Thread Size | 1/2 inch |
| Weight | 1.5 pounds |
| Width | 0.81 inches |
| Technical Specifications | |
| Item Hardness | Grade 10.9 |
| Manufacturer Grade | Premium |
| Maximum Shear Strength | Very High |
| Thread Class | 2A |
