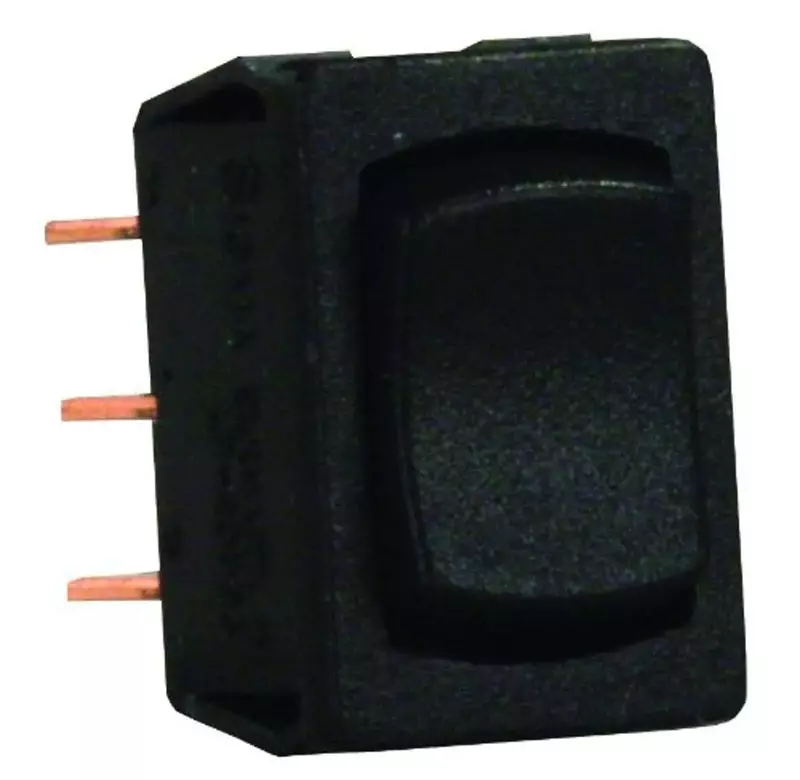

JR Products 13345 Mini On/Off/On Switch - Black
JR Products 13345 mini DPDT on/off/on panel-mount switch in black plastic. DPDT, 13A @125VAC / 10A @250VAC, 1/2 HP @125-250VAC. Cutout: 0.745” x 0.500”. UL/CSA/RoHS approved.
$5.72 $5.72
Customize
Available Quantity
12 Product Details
The JR Products 13345 Mini On/Off/On Switch is most often used in monitor panels and other applications where a single power supply operates two different options. H.D. switch. DPDT, 13 Amp @ 125 VAC, 10 Amp @ 250 VAC, 1/2 H.P. @ 125-250 VAC, 5 Amp @ 14 VDC. UL/CSA/RoHS approved. Cutout: 0.745” x 0.500”. Switch: 0.756” x 0.508”. Additional details: compact panel-mount DPDT switch, plastic housing, IP54 rated, mounting for panels, actuator touch-sensitive. Typical applications include automotive electronics, portable audio/video equipment, and control panels. Included: main component only. Warranty: contact seller within 30 days for issues.
- Mini On / Off / On Switch
- UL/CSA/RoHS approved
- Cutout: 0.745” x 0.500”
- Switch: 0.756” x 0.508”
- Color: Black
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Material Type | Plastic |
| Product Details | |
| Actuator Type | touch-sensitive electric switch |
| Circuit Type | 3-way |
| Connectivity Protocol | X-10 |
| Control Method | Touch |
| Controller Type | Push Button |
| Included Components | Main component only |
| Included Warranty Description | Please contact us if you experience any issues within 30 days of receipt. |
| International Protection Rating | IP54 |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Number of Positions | 2 |
| Specification Met | Approved |
| Switch Type | DPDT |
| Terminal | Dpdt |
| Unit Count | 1 Count |
| Wattage | 373 watts |
| Sizing & Dimensions | |
| Height | 0.7 inches |
| Length | 3.6 inches |
| Product Dimensions | 3.6 x 2.6 x 0.7 inches |
| Product Weight | 0.0500 |
| Weight | 0.8 ounces |
| Width | 2.6 inches |
| Technical Specifications | |
| Contact Type | Normally Open |
| Current Rating | 13 Amps |
| Operating Voltage | 250 Volts |
| Operation Mode | Off,On |
