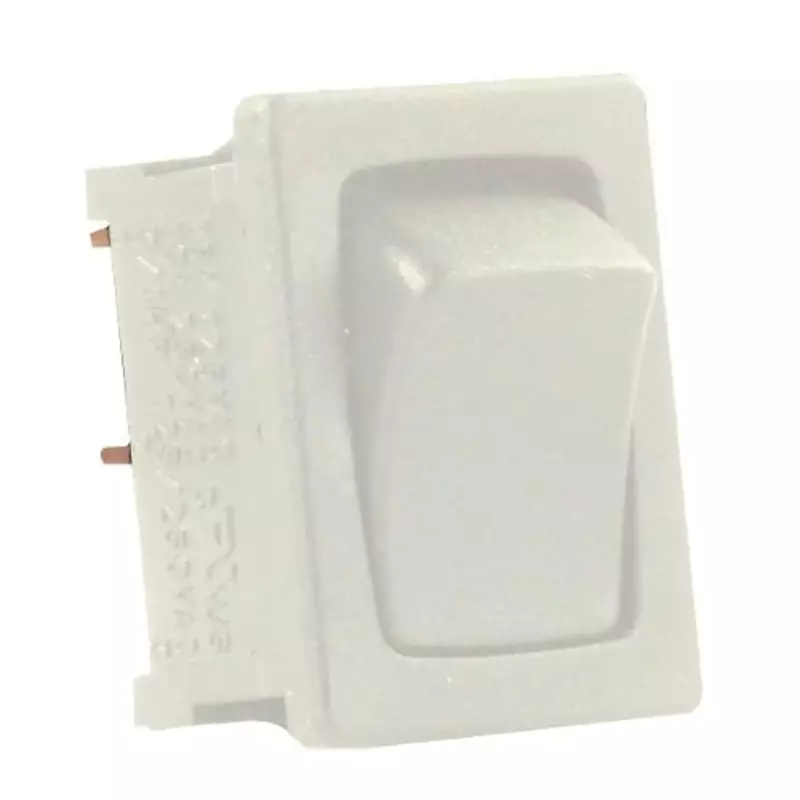

JR Products 13641-5 White Mini On/Off Switch (Pack of 5)
JR Products 13641-5 mini SPST on/off switch, white finish, brass contacts. Panel-mount, IP54 rated, 16A at 125/250VAC, 10A at 14VDC. Pack of 5 — ideal for appliance and monitor panels.
$18.76 $18.76
Customize
Available Quantity
7 Product Details
JR Products 13641-5 White Mini On/Off SPST switches (pack of 5) are compact, panel-mount switches designed for appliance and monitor panels. Each switch is SPST (single pole single throw), normally open, with brass contact material and hinge-lever actuator. They are rated 16 Amps at 125 VAC and 250 VAC, 3/4 H.P. at 125-250 VAC, and 10 Amps at 14 VDC. The switches are UL/CSA/VDE approved and feature an IP54 protection rating. Cut-out and switch dimensions are provided for accurate panel installation. These switches are supplied in a white finish and sold as a 5-count bag for easy replacement or installation.
- Cut Out = .756 inch x .508 inch (Switch = .745 inch x .500 inch)
- Used in appliance and monitor panels
- 16 Amp at monitor panels
- 16 Amp at 125 VAC, 16 Amp at250 VAC, 3/4 H.P. at 125-250 VAC, 10 Amp at 14 VDC. UL/CSA/VDE approved
- White Bag/5
Specifications:
| Materials & Construction | |
| Color | White |
| Contact Material | Brass |
| Product Details | |
| Actuator Type | Hinge Lever |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Contact Material | Brass |
| Contact Type | Normally Open |
| Control Method | Touch |
| Current Rating | 16 Amps |
| Included Components | Main component only |
| International Protection Rating | IP54 |
| Model | 13641-5 |
| Mounting Type | Panel Mount |
| Number of Items | 5 |
| Number of Positions | 2 |
| Operating Voltage | 250 Volts |
| Operation Mode | Off |
| Specification Met | Approved |
| Switch Type | SPST |
| Terminal | Spst |
| Unit Count | 5.0 Count |
| Warranty Description | Please contact us if you experience any issues within 30 days of receipt. |
| Wattage | 4000 watts |
| Sizing & Dimensions | |
| Height | 0.75 inches |
| Item Dimensions | 4.38 x 4 x 0.75 inches |
| Length | 4.38 inches |
| Product Dimensions | 4.38 x 4 x 0.75 inches |
| Weight | 0.01 ounces |
| Width | 4.00 inches |
| Technical Specifications | |
| Current Rating | 16 Amps |
| International Protection Rating | IP54 |
| Operating Voltage | 250 Volts |
| Wattage | 4000 watts |
