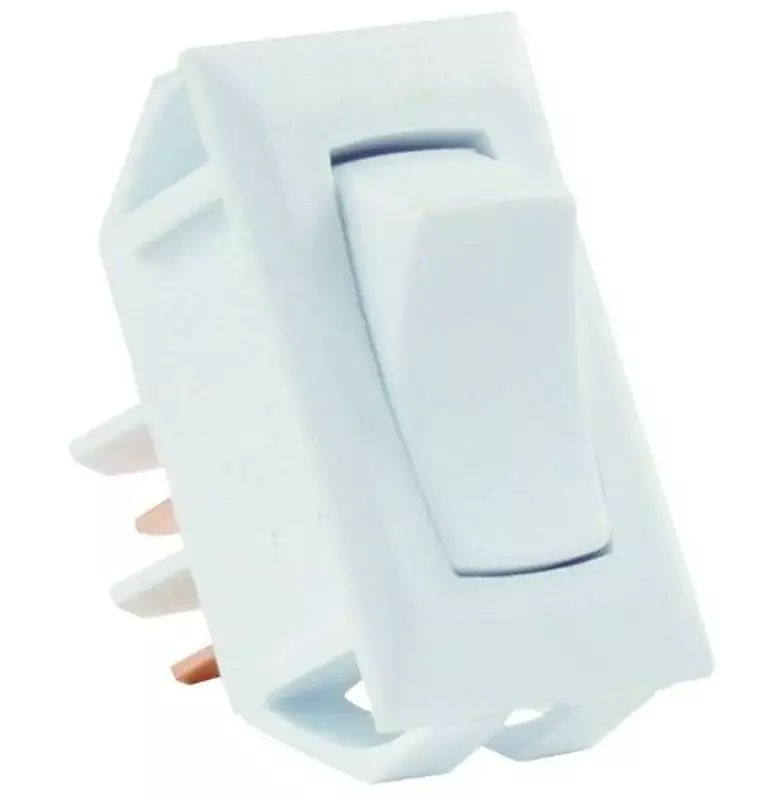

JR Products 13665 Momentary-On/Off Switch - White
JR Products 13665 momentary On/Off (SPST) switch in white for interior lighting and appliances. Rated 13 Amps @125VAC; UL/CSA/RoHS approved. Cutout: 1.125” x 0.550”.
$5.91 $5.91
Customize
Available Quantity
40 Product Details
The JR Products Momentary-On/Off Switch is commonly used for interior lighting and appliances. SPST, 13 Amp @ 125 VAC, 10 Amp @ 250 VAC, 1/2 H.P., 5 Amp @ 14 VDC. UL/CSA/RoHS approved. Cutout: 1.125” x 0.550”. Switch: 1.120” x 0.547”. ProductDatabase product dimensions: Height 1.0000, Width 2.6900, Length 4.3800, Weight 0.0500 (product table values). Ideal for replacement interior light applications in automotive and appliance installations. Connector: screw terminals; normally open contact. Includes JR Products 13665 Momentary-On/Off Switch - White. IP54 rated.
- Momentary-On / Off Switch
- Commonly used for interior lighting and appliances
- UL/CSA/RoHS approved
- Cutout: 1.125” x 0.550”
- Switch: 1.120” x 0.547”
Specifications:
| Materials & Construction | |
| Color | White |
| Contact Material | Metal |
| Material | Plastic |
| Product Details | |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Screw |
| Contact Material | Metal |
| Contact Type | Normally Open |
| Current Rating | 13 Amps |
| Included Components | JR Products 13665 Momentary-On/Off Switch - White |
| International Protection Rating | IP54 |
| Item Dimensions | 3.6 x 2.5 x 0.6 inches |
| Model | 13665 |
| Mounting Type | Wall Mount |
| Number of Items | 1 |
| Number of Positions | 1 |
| Operating Voltage | 12 Volts |
| Operation Mode | ON-OFF |
| Specification Met | approved |
| Switch Type | SPST |
| Terminal | Spst |
| Unit Count | 1.0 Count |
| Warranty Description | Please contact us if you experience any issues within 30 days of receipt. |
| Sizing & Dimensions | |
| Height | 1.00 inches |
| Length | 4.38 inches |
| Product Dimensions | 3.6 x 2.5 x 0.6 inches |
| Product Weight | 0.0500 |
| Weight | 0.8 ounces |
| Width | 2.69 inches |
| Technical Specifications | |
| Connector Type | Screw |
| Current Rating | 13 Amps |
| International Protection Rating | IP54 |
| Operating Voltage | 12 Volts |
