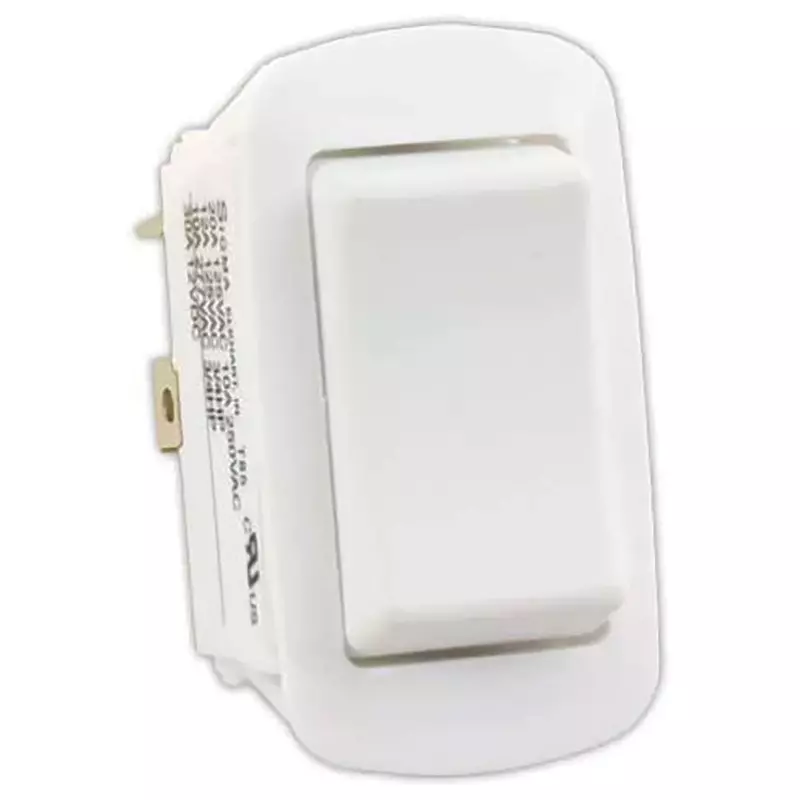

JR Products 13995 White Water Resistant Momentary-On/Off/Momentary-On Reversing Switch
Customize
JR Products 13995 White Water Resistant Momentary-On/Off/Momentary-On Reversing Switch. Manufacturer: JR Products. Model: 13995. This DPDT pushbutton switch features a water-resistant design with brass and stainless steel contact materials and a plastic body. Rated IP66 with CSA and RoHS compliance, the switch supports DPDT circuit operation and is suitable for panel-mount installation. Electrical ratings include 20 Amp @ 125 VAC, 10 Amp @ 250 VAC, 12 Amp @ 125 VAC 3/4 H.P., 10 Amp @ 277 VAC 3/4 H.P., and 30 Amp @ 12 VDC. Cutout and face dimensions: Switch 0.984" x 0.500"; Cutout 0.835" x 1.457". Item dimensions: 6.5 x 2.4 x 1.5 inches. Includes JR Products 13995 Momentary On/Off/Mom On Switch. Ideal for automotive replacement and panel-mounted control applications.
- DPDT, 20 Amp @ 125 VAC, 10 Amp @ 250 VAC, 12 Amp @ 125 VAC 3/4 H.P., 10 Amp @ 277 VAC 3/4 H.P., 30 Amp @ 12 VDC
- UL/CSA/RoHS/IP66 approved
- Cutout: 0.835" x 1.457"
- Switch: 0.984" x 0.500"
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Actuator Type | Push Button |
| Circuit Type | 4-way |
| Connectivity Protocol | X-10 |
| Connector Type | Clamp |
| Contact Material | Brass, Stainless Steel |
| Contact Type | Normally Open |
| Control Method | Touch |
| Included Components | JR Products 13995 Momentary On/Off/Mom On Switch |
| International Protection Rating | IP66 |
| Item Type Name | JR Products 13995 Momentary On/Off/Mom On Switch |
| Material Type | Plastic |
| Model | 13995 |
| Mounting Type | Panel Mount |
| Number of Positions | 3 |
| Specification Met | CSA, RoHS |
| Switch Type | DPDT |
| Terminal | Dpdt |
| Sizing & Dimensions | |
| Height | 1.5 inches |
| Length | 6.5 inches |
| Product Dimensions | 6.5 x 2.4 x 1.5 inches |
| Product Weight | 0.1200 pounds |
| Weight | 1.92 ounces |
| Width | 2.4 inches |
| Technical Specifications | |
| International Protection Rating | IP66 |
| Specification Met | CSA, RoHS |
