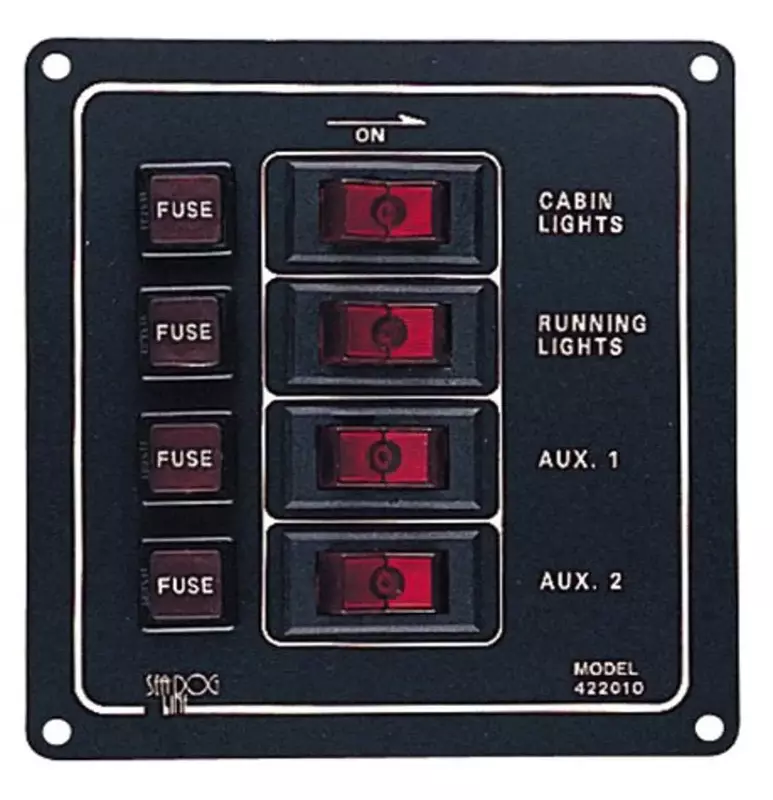

Aluminum Vertical Rocker Switch Panel featuring four 15A 12VDC illuminated SPST On/Off rocker switches and four 10A 12VDC fuse holders. Individual circuit 10A max. 37A total. 12VDC. Includes a sheet of 20 preprinted decals to customize to your specific applications. Constructed of stamped anodized aluminum. Installs with four #6 RH fasteners (not included). Stamped anodized aluminum construction provides corrosion resistance for marine environments. Panel overall dimensions and cutout sizing accommodate common marine installations; includes illuminated switches for easy visibility. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
| Materials & Construction |
| Color | No Color |
| Material | Aluminum |
| Outer Material | Aluminum |
| Product Details |
| Actuator Type | Hinge Lever |
| Circuit Type | 8-way |
| Connectivity Protocol | X-10 |
| Connector Type | Screw Terminal |
| Contact Material | Aluminum |
| Contact Type | Normally Open |
| Control Method | Touch |
| Current Rating | 10 Amps |
| International Protection Rating | IP54 |
| Number of Items | 1 |
| Operating Voltage | 12 Volts |
| Operation Mode | ON-OFF |
| Terminal | Fuse Holder (10a) |
| Unit Count | 1.0 Count |
| Wattage | 120 watts |
| Sizing & Dimensions |
| Height | 2.75 inches |
| Length | 6.68 inches |
| Product Dimensions | 6.68 x 9.68 x 2.75 inches |
| Weight | 5.9 ounces |
| Width | 9.68 inches |
