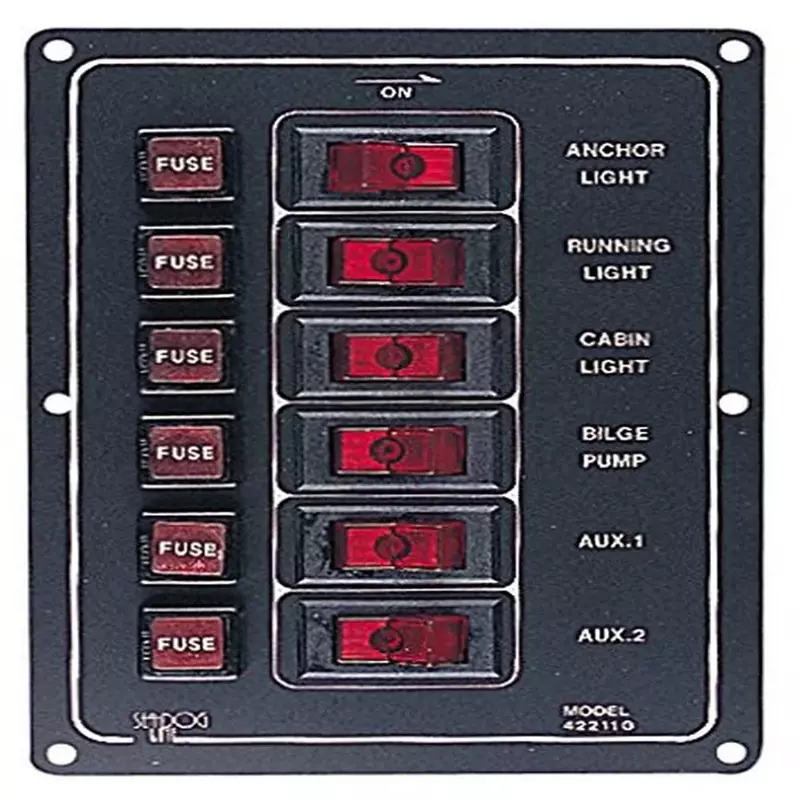

Sea-Dog 422110-1 Aluminum Vertical DC Switch Panel, 6 switches
Customize
Aluminum Switch Panel Vertical - 6 Switch. Aluminum Vertical Rocker Switch Panel features six 15A 12VDC illuminated SPST On/Off rocker switches and six 10A 12VDC fuse holders. Individual circuit 10A max. 37A total. 12VDC. Includes a sheet of 20 preprinted decals to customize to your specific applications. Constructed of stamped anodized aluminum. Installs with six #6 RH fasteners (not included). Constructed for durable marine and industrial use. Features: Outer dimensions of 6-1/2''H x 4-1/2''W; inner dimensions of 3-15/16''H x 3-1/2''W. Fuse holders included: Each switch comes with a 10A 12VDC fuse holder. Illumination: Switches are illuminated for easy use in the dark. Switch type: SPST On/Off rocker switches. Number of switches: 6 rocker switches. Technical specifications include 12 Volts operating voltage, 10 Amps current rating per switch, screw terminal connections, IP54 rating, and aluminum contact material. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Dimensions: Outer dimensions of 6-1/2''H x 4-1/2''W, Inner dimensions of 3-15/16''H x 3-1/2''W
- Construction: Constructed of stamped anodized aluminum
- Fuse holders included: Each switch comes with a 10A 12VDC fuse holder
- Illumination: Switches are illuminated for easy use in the dark
- Switch type: SPST On/Off rocker switches
- Number of switches: The product features 6 rocker switches
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Aluminum |
| Outer Material | Aluminum |
| Product Details | |
| Actuator Type | Hinge Lever |
| Connector Type | Screw Terminal |
| Control Method | Touch |
| Fuse Holders | Six 10A 12VDC fuse holders |
| Number of Switches | 6 |
| Style | Vertical |
| Switch Type | SPST On/Off rocker switch |
| Terminal | Screw |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 8 x 4 inches |
| Size | One Size |
| Weight | 10.4 ounces |
| Width | 8 inches |
| Technical Specifications | |
| Circuit Type | SPST |
| Connectivity Protocol | X-10 |
| Contact Material | Aluminum |
| Contact Type | Normally Open |
| Current Rating | 10 Amps |
| International Protection Rating | IP54 |
| Number of Items | 1 |
| Number of Positions | 6 |
| Operating Voltage | 12 Volts |
| Unit Count | 1 Count |
| Warranty | Warranty |
| Wattage | 180 watts |
