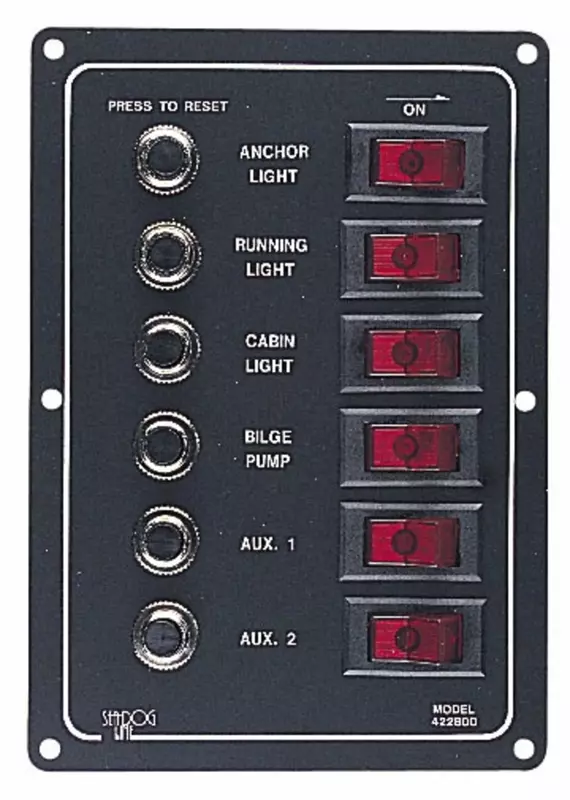

Aluminum Circuit Breaker Panel - 6 Circuit. Aluminum Breaker Panel features six 15A 12VDC illuminated SPST On/Off rocker switches and six thermal AC/DC circuit breakers (two 3A, two 6A, one 8A, and one 10A). Individual circuit 10A max. 40A total. 12VDC. Includes a sheet of 20 preprinted decals to customize to your specific applications. Constructed of stamped anodized aluminum. Installs with six #6 RH fasteners (not included). Get on the water. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
| Materials & Construction | |
| Material | Stamped anodized aluminum |
| Outer Material | Stamped anodized aluminum |
| Product Details | |
| Circuit Breaker Type | Standard |
| Current Rating | 30 Amps |
| Item model number | 422800-1 |
| Manufacturer Part No | 422800-1 |
| Mounting Type | Panel Mount |
| Number Of Poles | 1 |
| UPC | 035514423410 |
| Voltage | 12 Volts |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 8 x 4 inches |
| Weight | 14.1 ounces |
| Width | 8 inches |
| Technical Specifications | |
| Circuit Breaker Count | 6 (two 3A, two 6A, one 8A, one 10A) |
| Current Rating | 30 Amps |
| Individual Circuit Max | 10A |
| Total Max Current | 40A |
| Voltage | 12 Volts |
