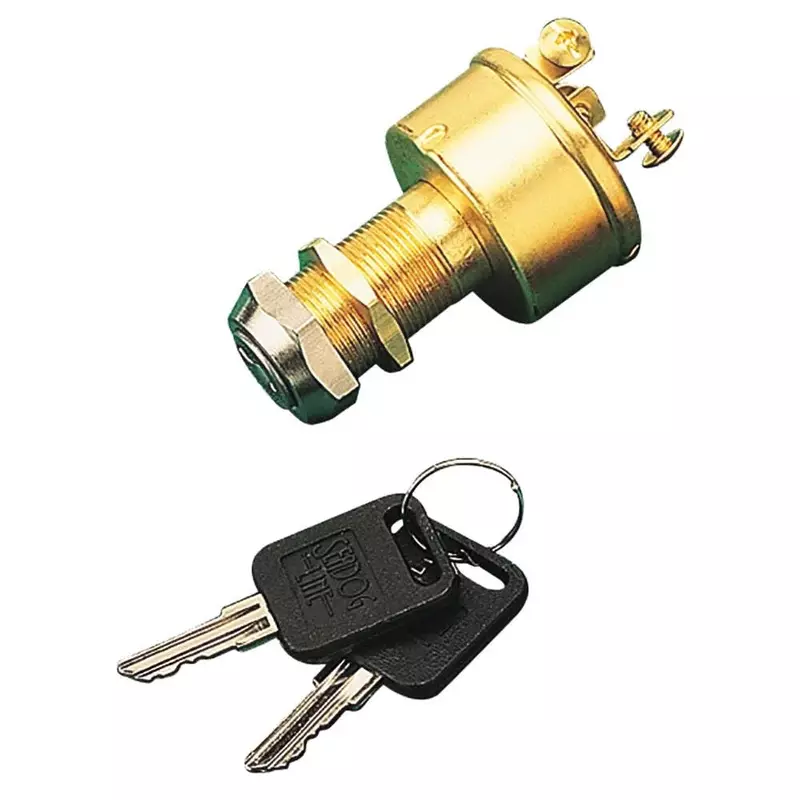

Sea-Dog Brass 3-Position Key Ignition Switch
Customize
Brass 3-Position Key Ignition Switch. Three Position Ignition Switch is constructed of stamped brass for off, ignition, and start functions. 13/16" diameter long shaft. Maximum panel thickness: 1-1/8". Three screw terminal electrical connection. Ignition: 15A @ 12VDC. Solenoid: 30A @ 12VDC. Includes two keys. Available with or without rubber boot. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Additional product details and specifications from marketplace data: Item dimensions L x W x H: 3.88 x 7.88 x 2.13 inches. Item Weight: 0.4 Pounds (approx. 6.4 ounces). Package Dimensions: 3.8 x 2.5 x 2.5 inches. Package Weight: 8 ounces. Operating Voltage: 12 Volts (DC). Current Rating: 15 Amps. Contact Material: Brass. Connector Type: Plug In. Terminal: Screw. Operation Mode: OFF-NONE-ON. Number of Positions: 3. International Protection Rating: IP54. Includes: Sea-Dog 420350-1 Three Position Ignition Switch and keys.
- The package width is 2.5 inches
- The package height is 2.5 inches
- The package length is 3.8 inches
- Top notch gear
Specifications:
| Materials & Construction | |
| Color | Brass |
| Contact Material | Brass |
| Material | Brass |
| Product Details | |
| Actuator Type | Ignition |
| Circuit Type | 3-way |
| Connectivity Protocol | X-10 |
| Connector Type | Plug In |
| Contact Type | Normally Closed |
| Global Trade Identification Number | 00035514423595 |
| Included Components | Sea-Dog 420350-1 Three Position Ignition Switch |
| International Protection Rating | IP54 |
| Model Name | Sea-Dog 420350-1 Three Position Ignition Switch |
| Number of Items | 1 |
| Number of Positions | 3 |
| Operation Mode | OFF-NONE-ON |
| Terminal | Screw |
| Unit Count | 1.0 Count |
| Warranty | Warranty |
| Sizing & Dimensions | |
| Height | 2.13 inches |
| Length | 3.88 inches |
| Product Dimensions | 3.88 x 7.88 x 2.13 inches |
| Size | One Size |
| Weight | 6.4 ounces |
| Width | 7.88 inches |
| Technical Specifications | |
| Connector Type | Plug In |
| Contact Type | Normally Closed |
| Current Rating | 15 Amps |
| International Protection Rating | IP54 |
| Lower Temperature Rating | 28 Degrees Fahrenheit |
| Operating Voltage | 12 Volts (DC) |
| Terminal | Screw |
| Upper Temperature Rating | 78 Degrees Fahrenheit |
