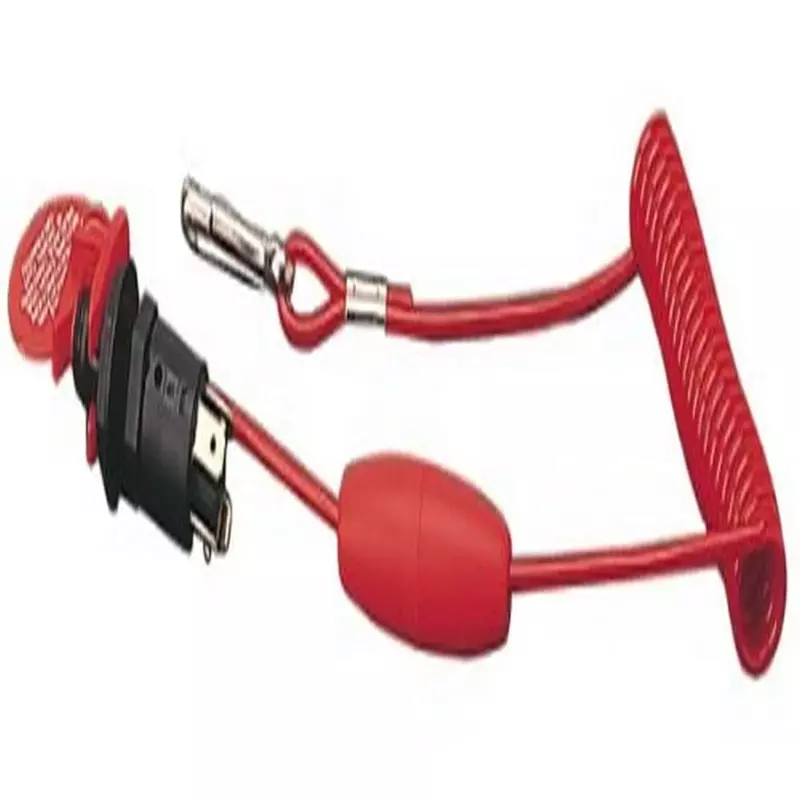

Sea-Dog Universal Kill Switch w/Floating Lanyard
Customize
Universal Kill Switch with Floating Lanyard This marine emergency cut-off Unversal Kill Switch with Floating Lanyard attaches to your life vest while operating a boat or personal watercraft. Designed to instantly cut battery power when detached. Dual circuitry allows kill switch to be wired for either ignition kill or magneto kill depending on the application. The housing is constructed of weatherproof injection molded nylon and Delrin with 0.250" brass terminals. The switch includes a floating lanyard approximately 15" when coiled and 48" when stretched, which should be replaced if worn, cut, or frayed. Mounting hole is 5/8" in diameter. Maximum panel thickness: 3/8". Maximum 5A draw. WARNING: Switch should be tested for proper function before each use. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . Sea-Dog Line is a 3rd generation family company with a history of satisfied customers stretching back to the company's start in 1933. The company is the recipient of multiple industry awards for quality and efficiency.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Brass |
| Material | Brass |
| Outer Material | Injection molded nylon and Delrin |
| Product Details | |
| Actuator Type | Push Button |
| Circuit Type | 2-way |
| Connectivity Protocol | X-10 |
| Connector Type | Screw Terminal |
| Contact Material | Brass |
| Contact Type | Adjustable |
| Control Method | App |
| Current Rating | 5 Amps |
| International Protection Rating | IP54 |
| Is Discontinued By Manufacturer | No |
| Item model number | 3004.4612 |
| Model | 420498-1 |
| Number of Items | 1 |
| Number of Positions | 1 |
| Operation Mode | manual |
| Terminal | Screw |
| Unit Count | 1.0 Count |
| Wattage | 6E+1 |
| Sizing & Dimensions | |
| Height | 1.5 inches |
| Length | 3.88 inches |
| Product Dimensions | 3.88 x 7.88 x 1.5 inches |
| Weight | 0.16 ounces |
| Width | 7.88 inches |
| Technical Specifications | |
| Current Rating | 5 Amps |
| International Protection Rating | IP54 |
