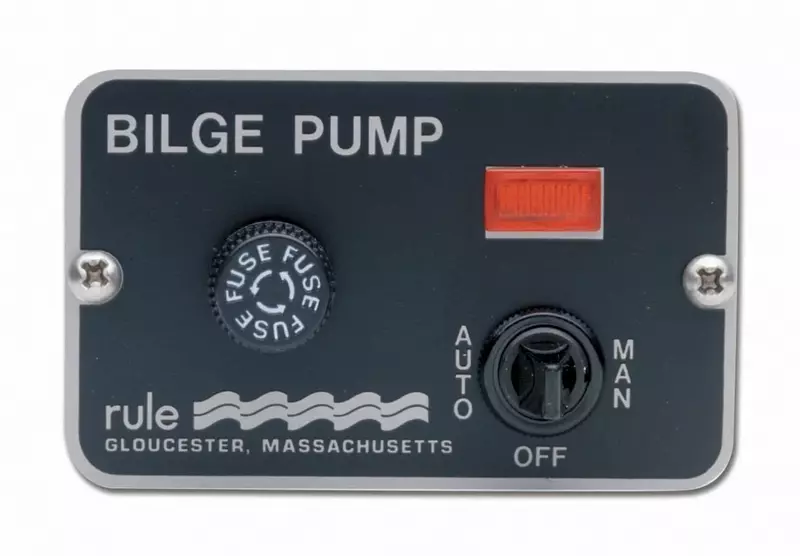

Rule 41 Marine Deluxe Panel Switch (12-Volt), Black, 3-1/4" L x 2" W
Customize
3-Way Panel Lighted Switch Controls any pump equipped with an automatic float switch. Toggle has three positions (automatic, off, or manual) and has a "fail safe" spring return to "off" from the "manual" position. Panel is black stainless steel and has red indicator light and fuse holder. WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Volts: 12v. Type: Switches. Additional features: hinge lever actuator, marine terminals, screw terminal connectors, normally open contact type, IP54 rating, 3 positions, 1 Amp current rating, 12 Watts. Includes Rule Deluxe 3-Way Panel Lighted Switch; Model 41. Country of Origin: Mexico.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Stainless Steel |
| Outer Material | Stainless Steel |
| Product Details | |
| Actuator Type | Hinge Lever |
| Circuit Type | 3-way |
| Connector Type | Screw Terminal |
| Contact Material | Stainless Steel |
| Contact Type | Normally Open |
| Country of Origin | Mexico |
| Current Rating | 1 Amps |
| Included Components | Rule Deluxe 3-Way Panel Lighted Switch |
| International Protection Rating | IP54 |
| Model Name | Rule Deluxe 3-Way Panel Lighted Switch |
| Model Number | 41 |
| Number of Positions | 3 |
| Operating Voltage | 12 Volts |
| Operation Mode | Automatic,Off |
| Style | Deluxe |
| Terminal | marine |
| Type | Switches |
| Warranty | Warranty |
| Wattage | 12 watts |
| Sizing & Dimensions | |
| Height | 1.7 inches |
| Length | 5.5 inches |
| Product Dimensions | 5.5 x 5.2 x 1.7 inches |
| Size | 3-1/4" L x 2" W |
| Weight | 3.2 ounces |
| Width | 5.2 inches |
| Technical Specifications | |
| Current Rating | 1 Amps |
| International Protection Rating | IP54 |
| Number of Positions | 3 |
| Operating Voltage | 12 Volts |
